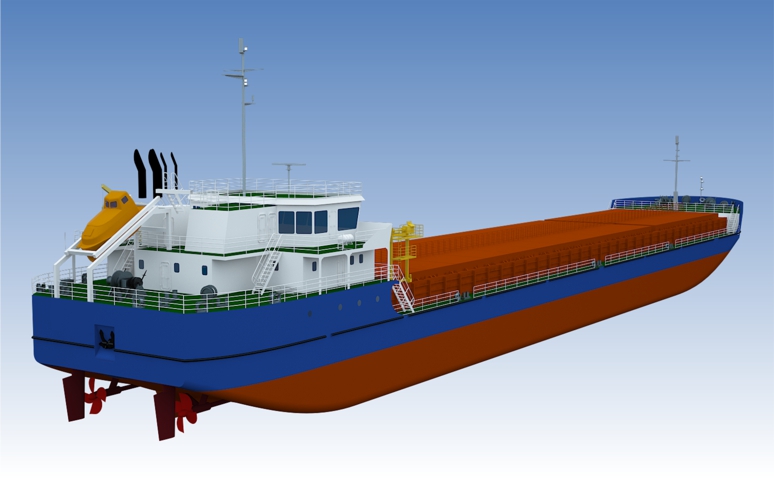

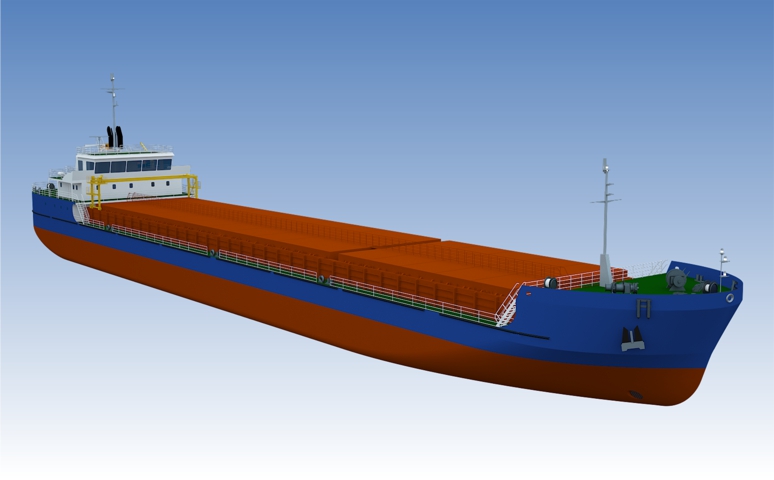

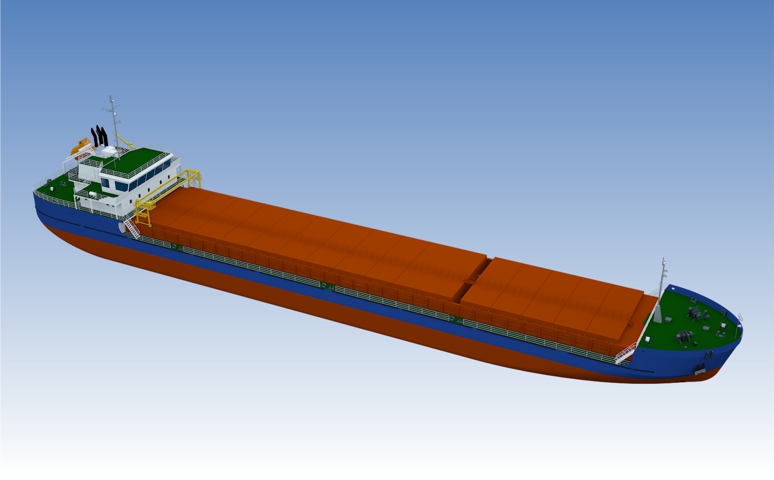

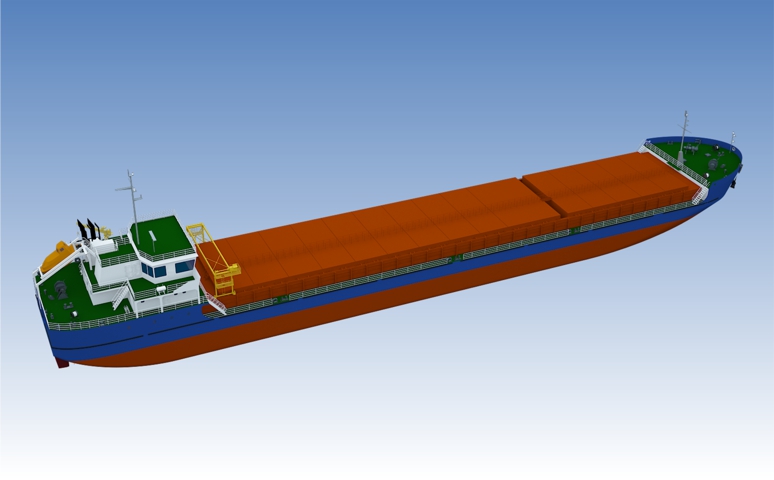

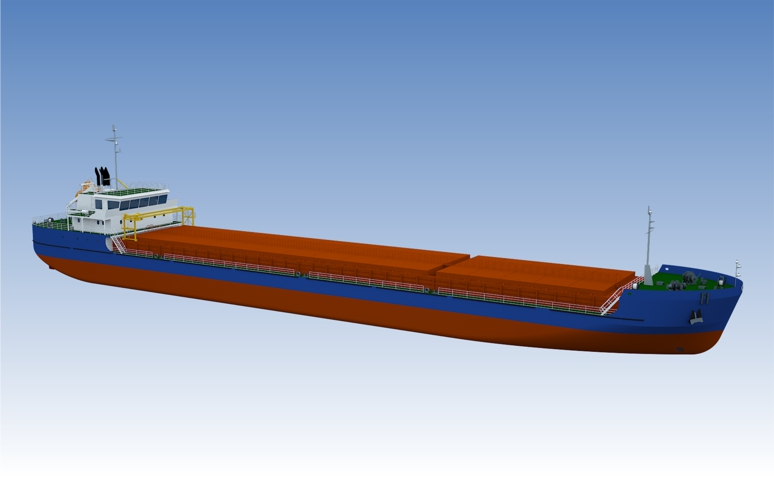

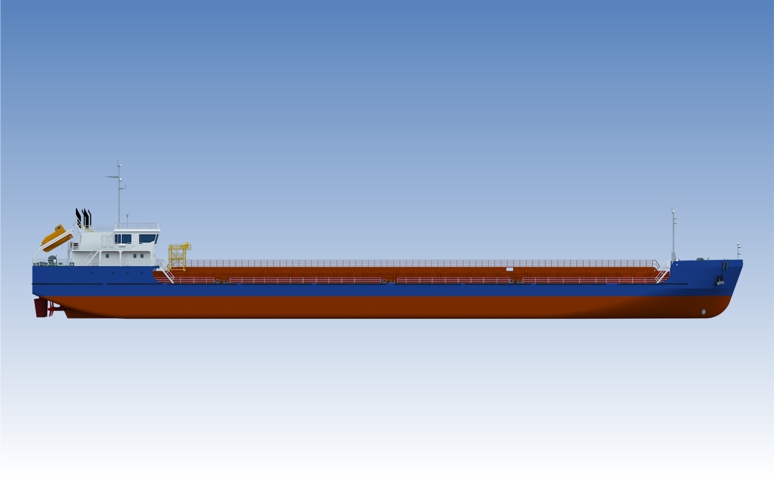

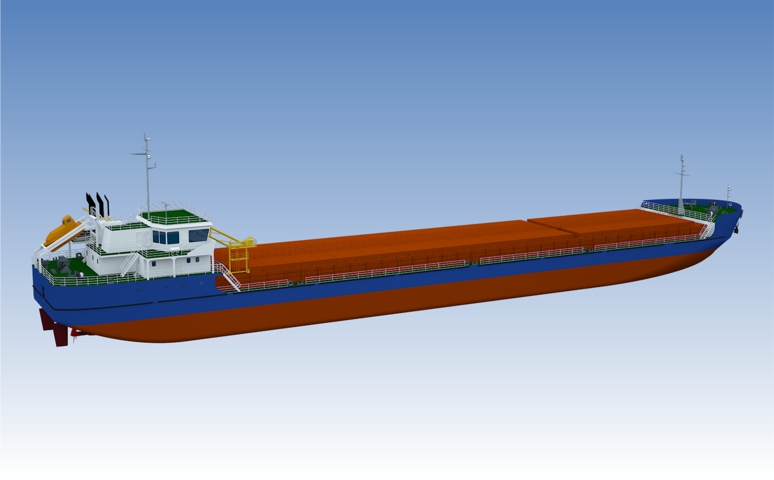

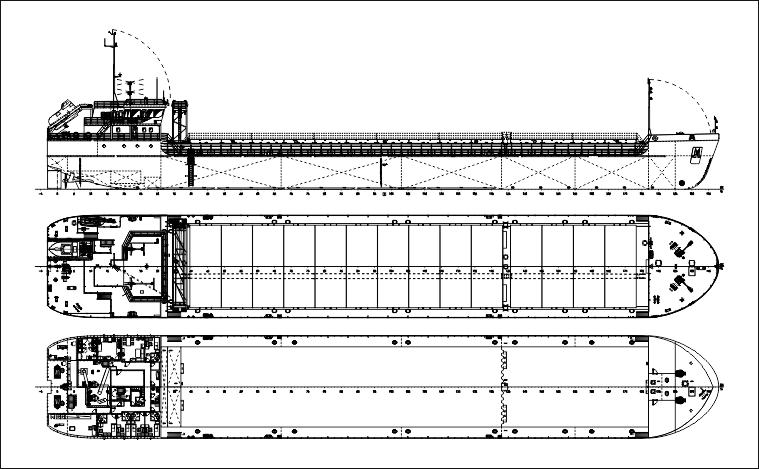

PROJECT RSD34
5230 DWT multipurpose dry-cargo vessel








Purpose - carrying of the general and bulk cargoes (including grain), packaged lumber, timber, scrap-metal, bunched and rolled steel, large-dimension and heavy-weight cargoes, coil, hazardous cargoes of classes 1, 2, 3, 4, 5, 6.1, 8, 9 in accordance with IMDG Code and category "B" cargoes from IMSBC Code.
# | Name | Value |
---|---|---|
1. | Main dimension | |
Length overall, m | 110.64 | |
Length conventiona, m | 107.69 | |
Breadth overall, m | 16.98 | |
Breadth scantlings, m | 16.90 | |
Depth, m | 5.50 | |
L x B x H | 110.64 x 16.98 x 5.50 = 10 333 | |
2. | Draught scantlings, m | 4.0 |
3. | Deadweight at sea at draught d = 3.80 / 4.0 / 4.20 m (about), t |
4530 / 4890 / 5230 |
4. | Deadweight in river at draught d = 3.20 / 3.30 / 3.40 /3.60 m (about), t |
3330 / 3500 / 3680 / 4020 |
5. | Endurance, days | 25 |
6. | Number of cargo holds | 2 |
7. | Cagro holds dimension (l x b x h), m | 1 hold - 22.80 x 13.20 x 6.60 2 hold - 52.40 x 13.20 x 6.60 |
8. | Cargo holds capacity, m³ | 6670 |
9. | Ballast tanks capacity, m³ | 2977 |
10. | Stowage factor at draft d = 4.0 m at sea / d = 3.60 m in river, m³/t |
1.48 / 1.78 |
11. | RS class | KM ![]() R3-RSN AUT3-C BWM(T) R2-RSN(4,5) - in operation |
12. | ME power, kW | 2 x 691 |
13. | Rudder and propeller complex | 2 FPP + 2 rudder |
14. | Bow thruster, kW | 100 |
15. | Auxiliary engines: | |
diesel-generators, kW | 3 x 168 | |
emergency diesel-generator, kW | 1 x 104 | |
16. | Crew, pers. | 9 + pilot |
17. | Speed (at draft d = 4.0 m and 85% MCR), knots | 10.2 ±0.2 |
