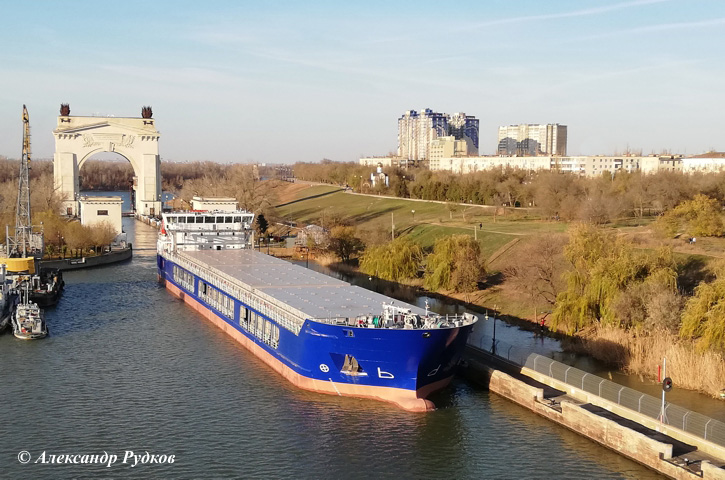

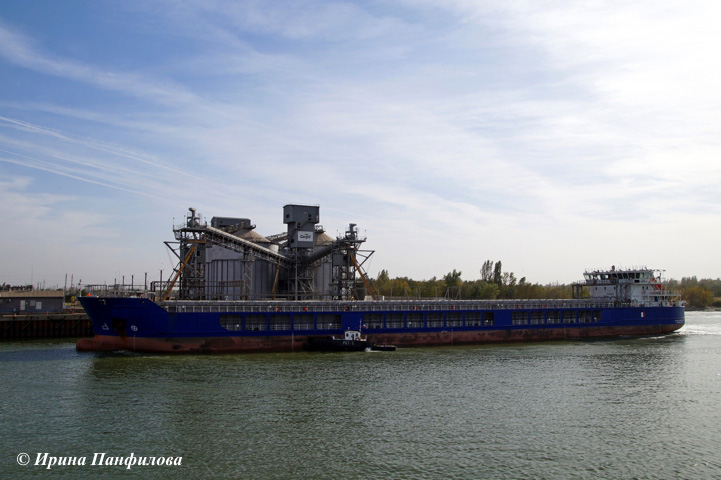

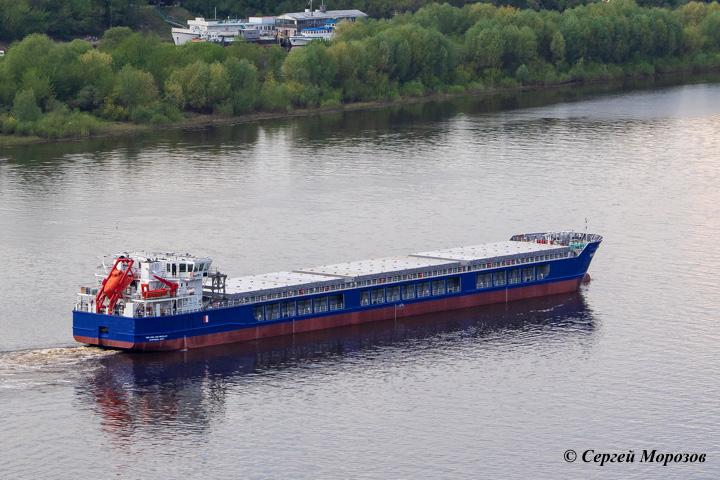

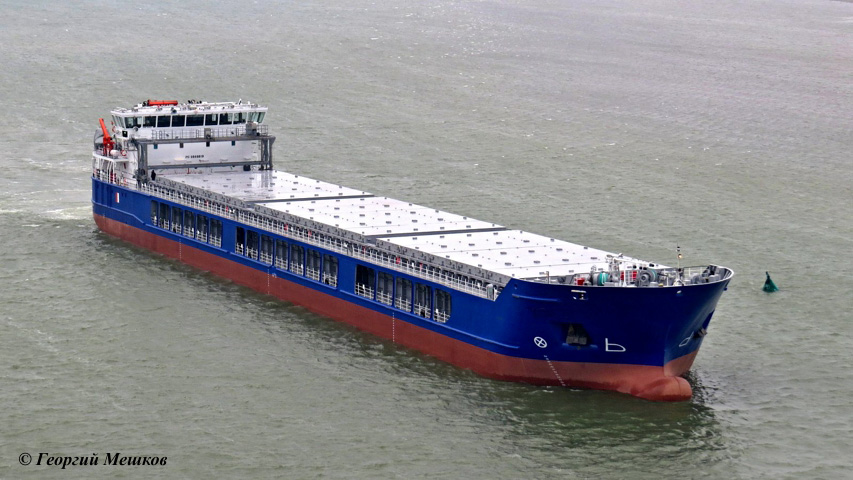

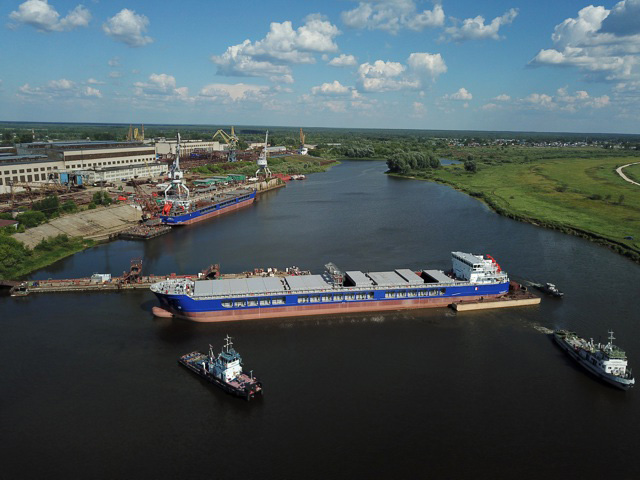

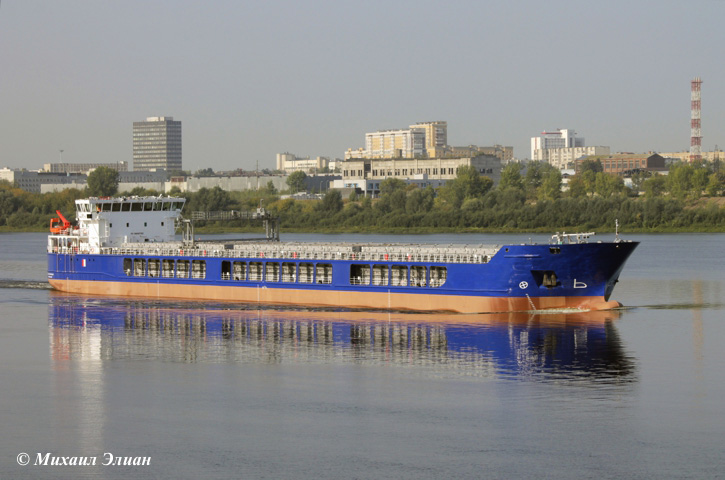

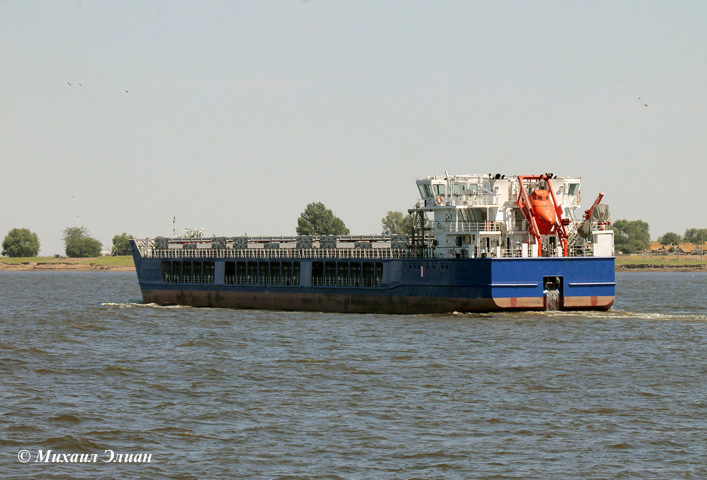

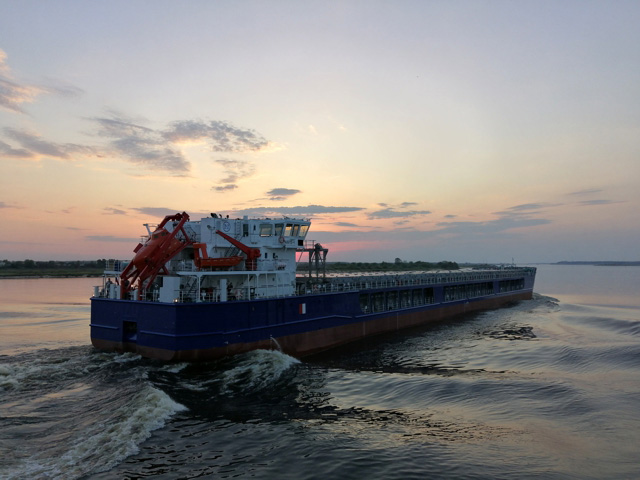

PROJECT RSD32M

6328 / 3940 DWT multipurpose dry-cargo vessel of "Azov five-thousander" class


Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes (including grain), packaged lumber, timber, scrap-metal, bunched and rolled steel, large-dimension and heavy-weight cargoes, coil, hazardous cargoes of classes 1, 2, 3, 4, 5, 6.1, 8, 9 in accordance with IMDG Code and category "B" cargoes from IMSBC Code.

Nominations:
RINA - Royal Institution of Naval Architects

# Name Value
1. Main dimension
Length overall, m 123.17
Length between PP, m 116.72
Breadth overall, m 16.75
Breadth scantlings, m 16.50
Depth, m 5.50
L x B x H 123.17 x 16.75 x 5.50 = 11 347
2. Draught on SWL at sea, m 4.745
3. Draught in river, m 3.60
4. Deadweight at sea at SWL draught, t 6328
5. Deadweight at sea at draught d = 4.20 m, t 5157
6. Deadweight in river at draught d = 3.60 m, t 3940
7. Endurance (at sea / in river), days 20 / 15
8. Number of cargo holds 3
9. Cargo holds capacity, m³ 8804
10. Container capacity (holds / deck), TEU 240 (180 / 60)
11. Ballast tanks capacity, m³ 2451
12. Stowage factor, m³/t:
at SWL draught at sea 1.49
at draft d = 4.20 m (at sea) 1.81
at draft d = 3.60 m (in river) 2.06
13. RS class KM Ice1 R2 AUT1-ICS BWM(T) CONT
(deck, cargo holds Nos.1,2,3) DG (bulk, pack)
14. ME power, kW 2 x 1100

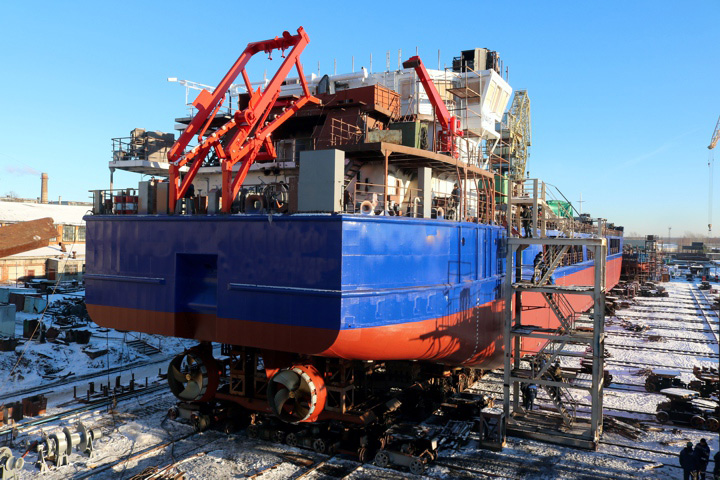

15. Rudder and propeller complex 2 x Rudderpropellers
16. Bow thruster, kW 120
17. Auxiliary engines:
diesel-generators, kW 3 x 160
emergency diesel-generator, kW 1 x 80
18. Crew / berth, pers. 11 / 14
19. Speed (at SWL draught and 85% MCR), knots 10.0
