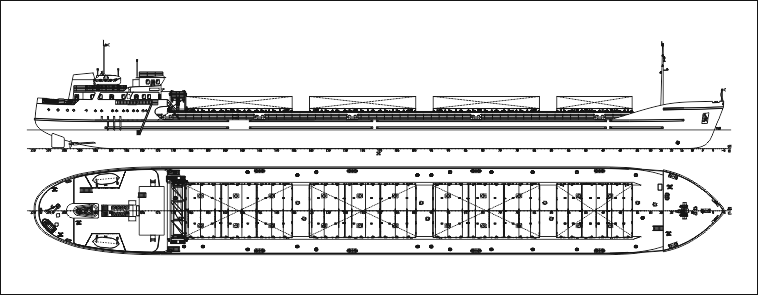

PROJECT RSD26

4942 DWT multipurpose dry-cargo vessel
(modernization of project 1577 tanker)




Purpose - carrying of the general and bulk cargoes including grain, mineral fertilizers, sulphur (dangerous cargo of class 4.1) and coil, steel in holds, general and timber cargoes on hatch covers without international voyages.




# Name Value
1. Main dimension
Length overall, m 132.60
Length between PP, m 128.79
Breadth overall, m 16.90
Breadth, m 16.50
Depth, m 5.50
L x B x H 132.60 x 16.90 x 5.50 = 12 325
2. Draught at sea at SWL, m 3.527
3. Deadweight at sea at SWL draught, t 4942
4. Endurance, days 7
5. Number of cargo holds 4
6. Cargo holds capacity, m³ 6411
7. Hatch covers removable type
8. Ballast tanks capacity, m³ 2931
9. Cargo crane electric gantry crane
10. RRR class O-PR 2.0
11. ME power, kW 2 x 736
12. Rudder and propeller complex 2 FPP +
2 rotated nozzles with stabilizers
13. Bow thruster, kW 95
14. Auxiliary engines:
diesel-generators, kW 3 x 100
harbour diesel-generator, kW 1 x 58.8
15. Crew / berth, pers. 12 /23
16. Speed, knots 10.7
