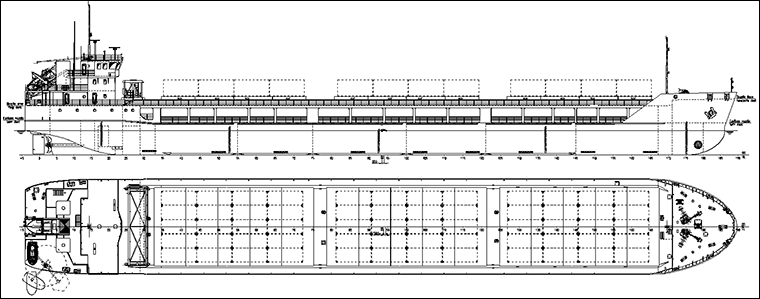

PROJECT RSD18

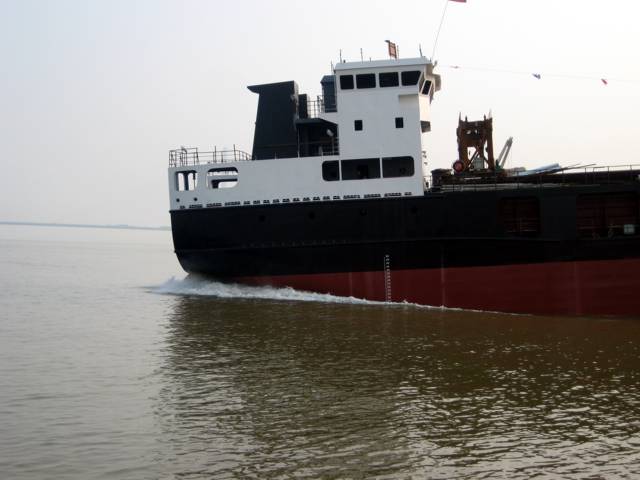

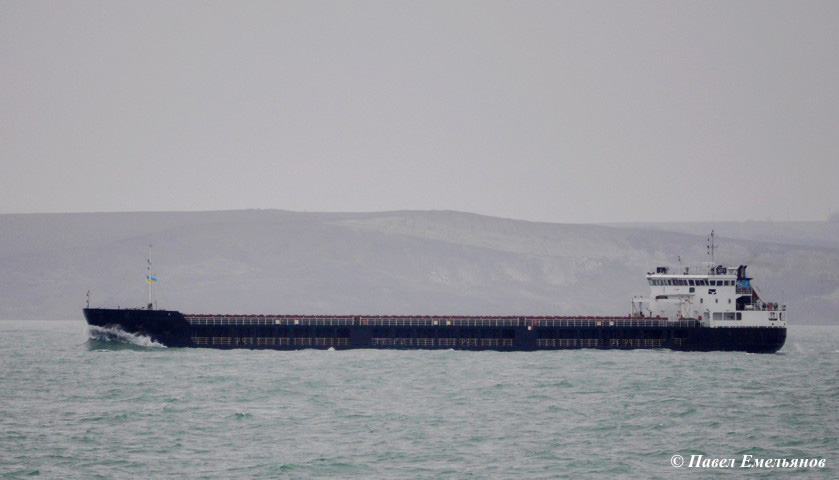

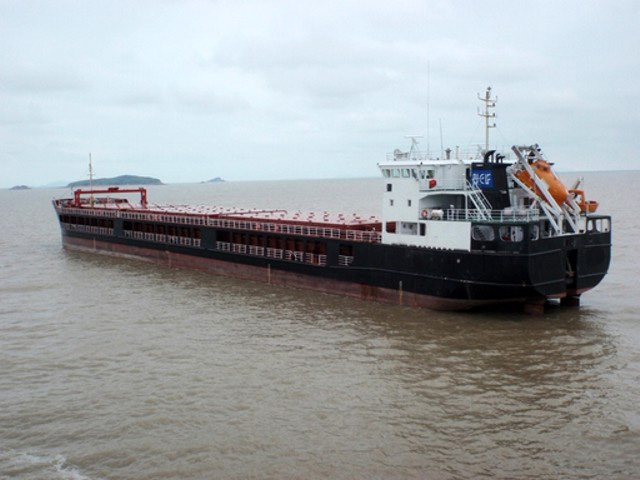

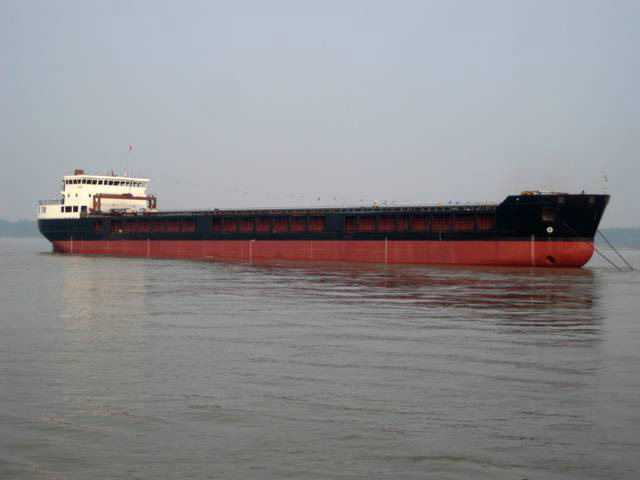

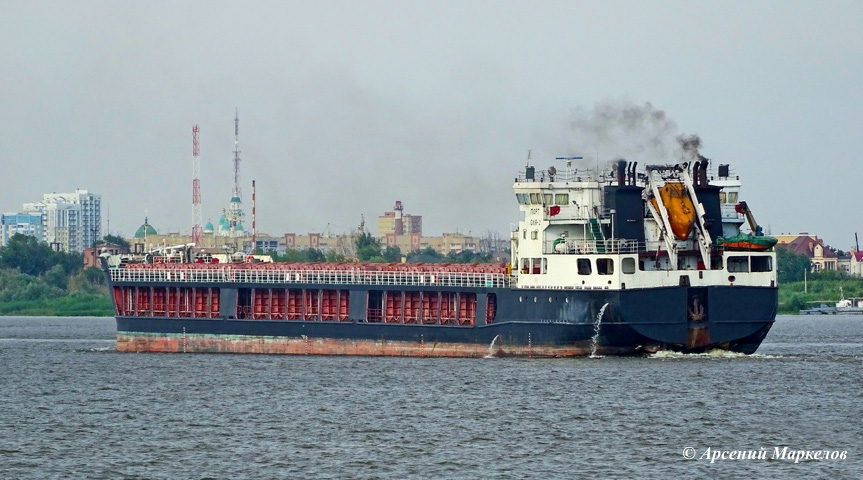

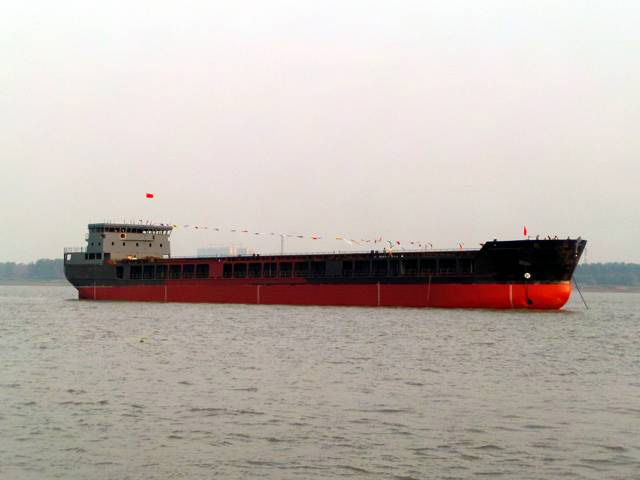

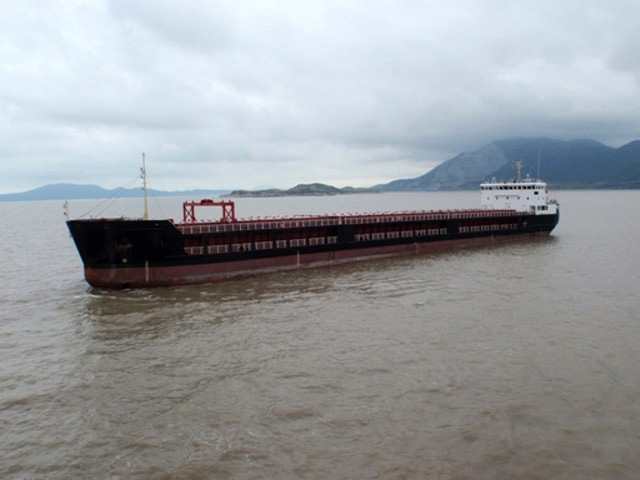

5189 / 3532 DWT multipurpose dry-cargo vessel "UCF-1" type of "Azov five-thousander" class




Purpose - sea and mixed (river-sea) carrying of general, bulk, timber and large-dimension cargoes, containers of international standard, dangerous cargoes 1.4S, 2, 3, 4, 5, 6.1, 8, 9 and coil.



Laying of the keel Laid down Delivery Years of construction
    6 2007-2014


# Name Value
1. Main dimensions
Length overall, m 123.18
Length scantlings, m 118.63
Breadth overall, m 16.70
Breadth scantlings, m 16.50
Depth, m 5.50
L x B x H 123.18 x 16.70 x 5.50 = 11 314
2. Draught (at sea / in river), m 4.20 / 3.40
3. Deadweight (at sea / in river), t 5189 / 3532
4. Endurance (at sea / in river), days 20 / 15
5. Number of cargo holds 3
6. Cargo holds capacity, m³ 8595
7. Container capacity (holds / deck), TEU 240 (180 / 60)
8. Ballast tanks capacity, m³ 2485
9. Stowage factor, m³/t:
at draft d = 4.20 m (at sea) 1.77
at draft d = 3.40 m (in river) 2.62
10. RS class KM Ice1 R2 AUT3
11. ME power, kW 2 x 956
12. Rudder and propeller complex 2 FPP + 2 rudders
13. Bow thruster, kW 120
14. Auxiliary engines:
diesel-generators, kW 3 x 160
emergency diesel-generator, kW 1 x 80
15. Crew / berth, pers. 12 / 14
16. Speed (at draft d = 4.2 m and 85% MCR), knots 10.5 ±0.3
