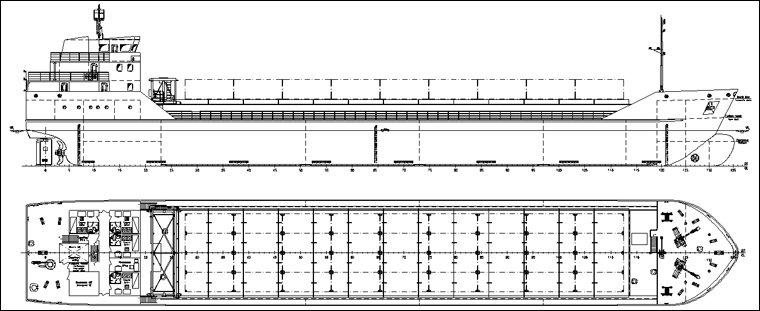

PROJECT RSD16

3152 / 2106 DWT multipurpose dry-cargo vessel of "Azov three-thousander" class


Purpose - sea and mixed (river-sea) carrying of the general, bulk cargoes, timber and large-dimension cargoes, including containers of international standard and dangerous cargoes of classes 1.4S, 2, 3, 4, 5, 6.1, 8, 9 by IC IMDG and Appendix B of the BC Code.

# Name Value
1. Main dimensions
Length overall, m 89.73
Length, m 84.52
Breadth overall, m 13.50
Breadth, m 13.30
Depth, m 5.80
L x B x H 89.73 x 13.50 x 5.80 = 7 026
2. Draught (at sea / in river), m 4.50 / 3.60
3. Ballast draft, m 2.80
4. Deadweight (at sea / in river), t 3152 / 2106
5. Endurance, days 20
6. Range, nautical miles 5000
7. Cargo carrying capacity (at sea / in river), t 2892 / 1846
8. Number of cargo holds 1
9. Cargo hold dimension (l x b x h), m 58.50 x 10.80 x 6.90
10. Cargo hold capacity, m³ 4300
11. Ballast tanks capacity, m³ 1360
12. RS class KM LU1 II A3 (OBHM)
13. ME power, kW 1 x 1620
14. Bow thruster, kW 170
15. Auxiliary engines:
diesel-generator, kW 1 x 216
shaft generator, kW 1 x 216
emergency diesel-generator, kW 1 x 70
16. Crew / berth, pers. 9 / 10
17. Speed, knots 11.5 ±0.3
