PROJECT RSD12

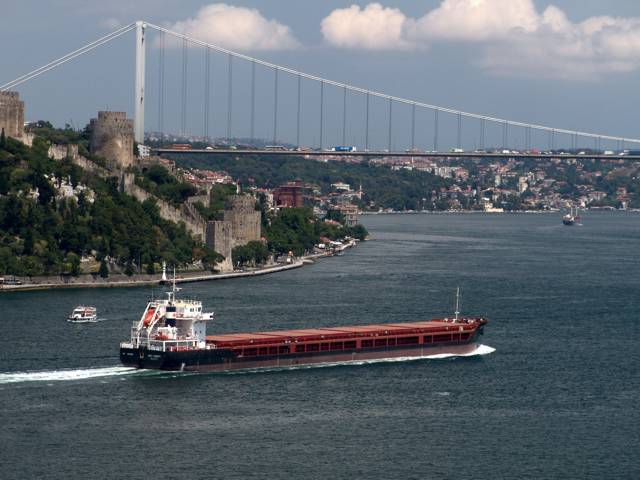

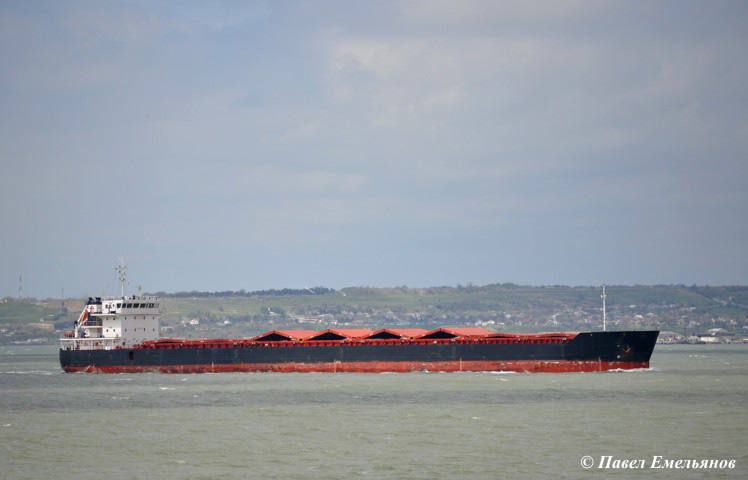

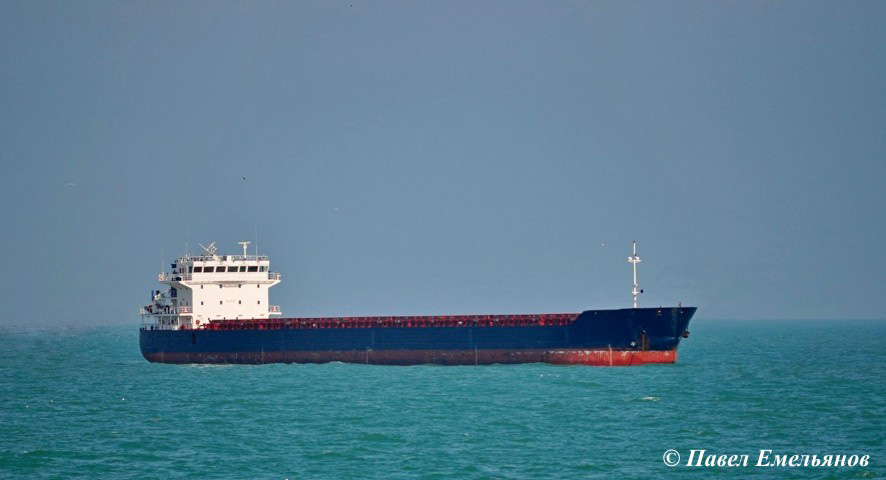

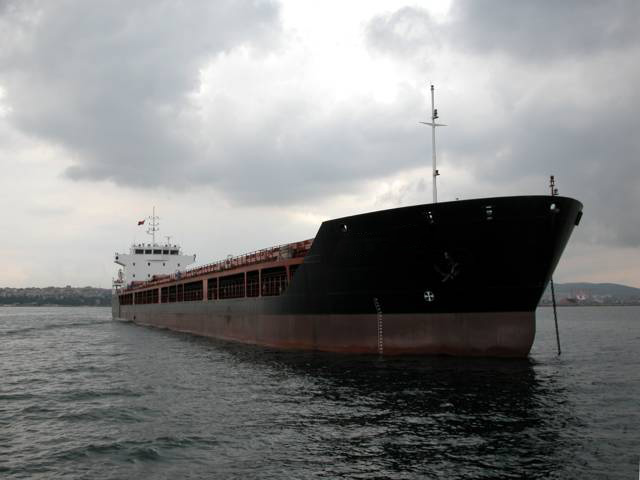

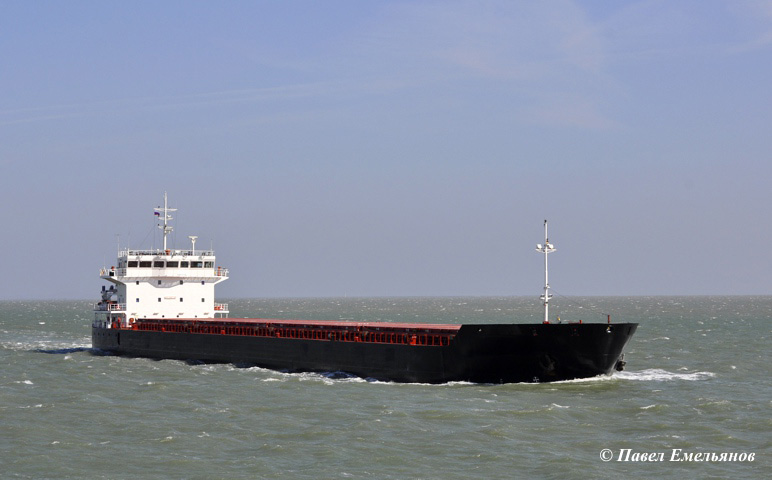

8023 DWT multipurpose dry-cargo vessel of "Azov max" class

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21 Thumbnail 22

Purpose - sea carrying of general, bulk, timber and large-dimension cargoes, containers of international standard and coil.

# Name Value
1. Main dimensions
Length overall, m 142.0
Length scantlings, m 136.30
Breadth overall, m 18.20
Breadth scantlings, m 18.0
Depth, m 6.0
L x B x H 142.0 x 18.20 x 6.0 = 15 506
2. Draught on SWL, m 4.767
3. Deadweight at SWL draught, t 8023
4. Deadweight at sea at draught d = 4.50 m, t 7398
5. Endurance, days 20
6. Number of cargo holds 4
7. Cargo holds capacity, m³ 10929
8. Container capacity (holds / deck), TEU 312 (232 / 80)
9. Ballast tanks capacity, m³ 3131
10. Stowage factor, m³/t:
at draft d = 4.767 m (at sea) 1.44
at draft d = 4.50 m (at sea) 1.58
11. RS class KM LU1 II A1
12. ME power, kW 2 x 1520

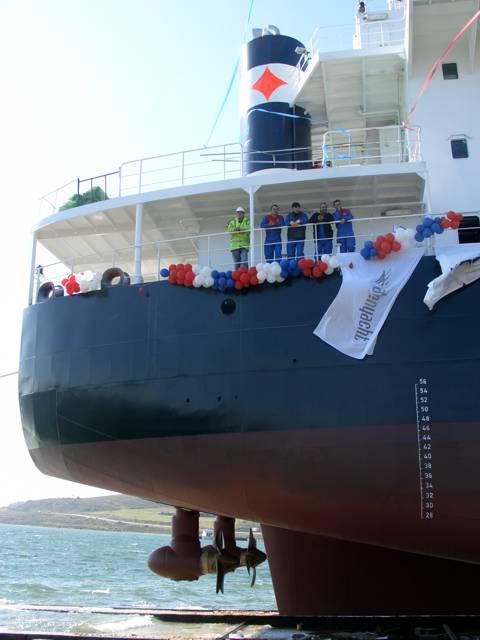

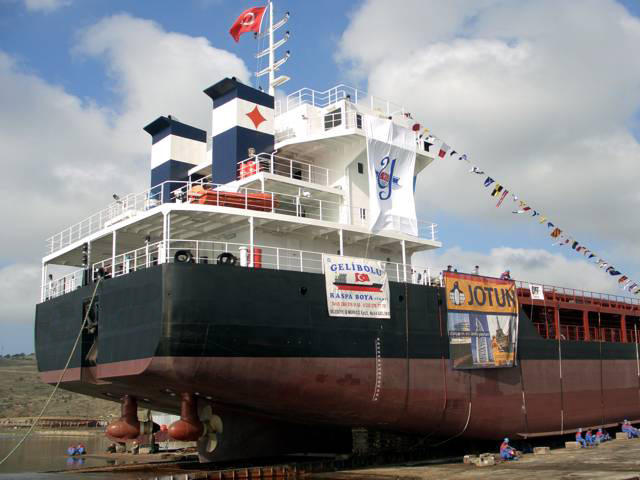

13. Rudder and propeller complex 2 x Rudderproppellers
14. Bow thruster, kW 350
15. Auxiliary engines:
diesel-generators, kW 2 x 146
shaft generators, kW 2 x 400
emergency diesel-generator, kW 1 x 81
16. Crew / berth, pers. 12 / 14
17. Speed (at draft d = 4.5 m and 85% MCR), knots 10.5 ±0.3
