PROJECT RDB67

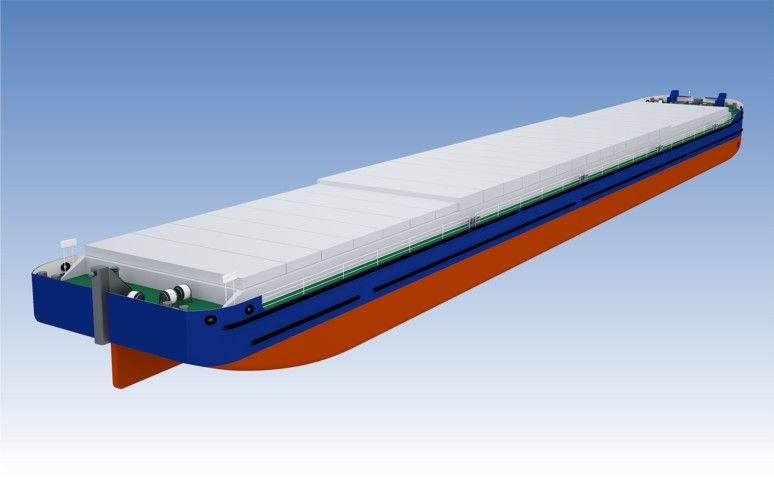

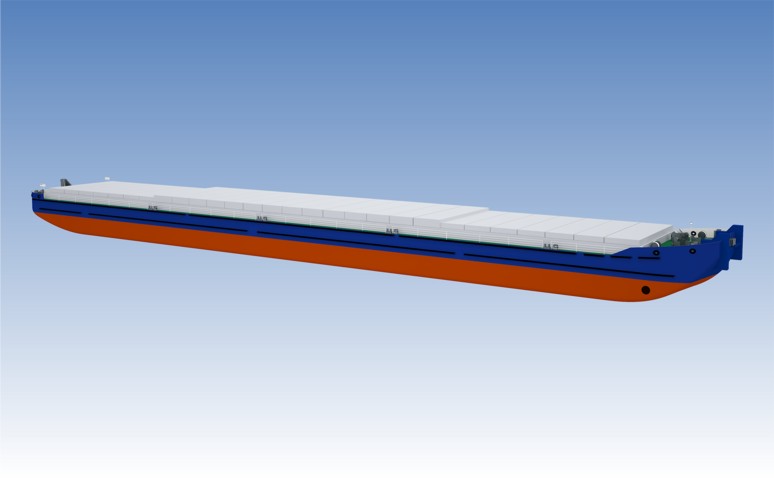

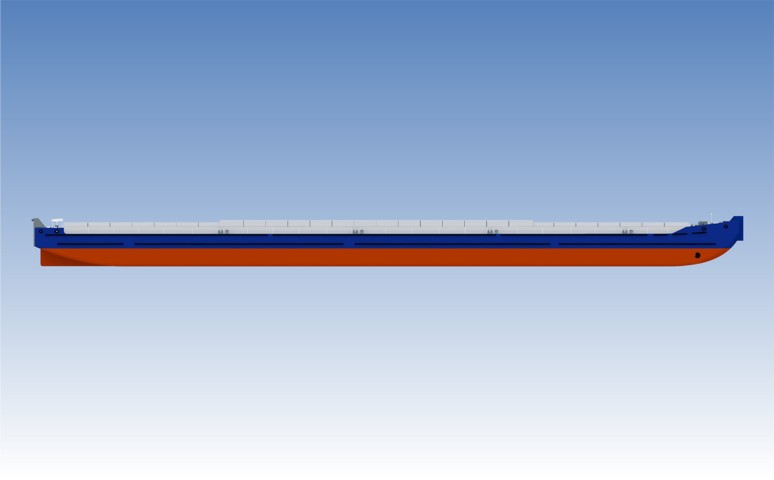

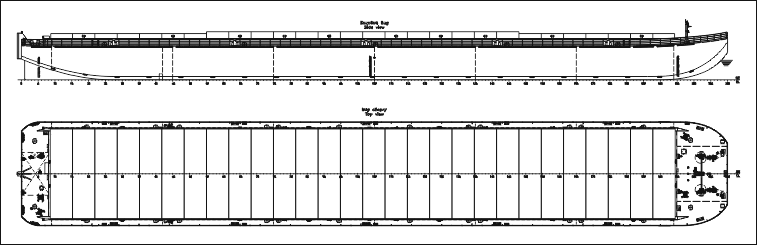

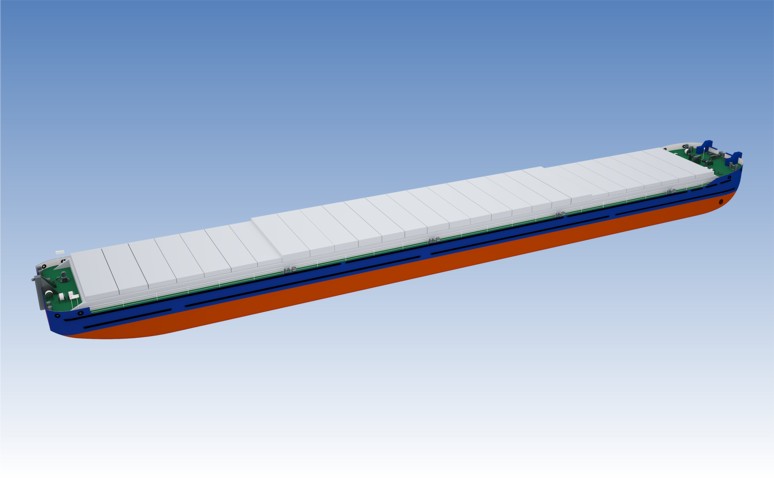

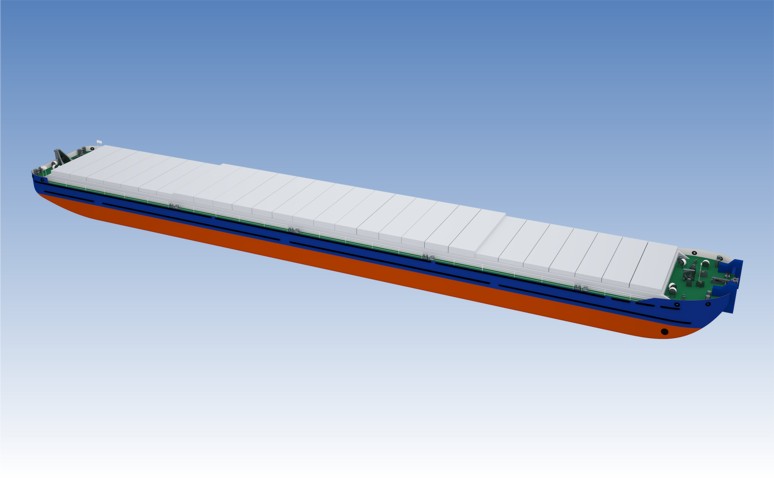

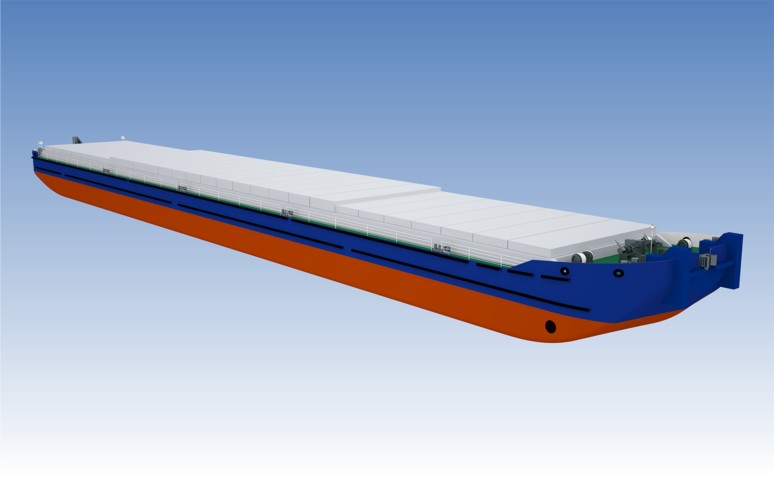

5325 DWT river non-self-propelled multipurpose dry-cargo vessel







							Purpose - carrying of the general and bulk cargoes, including steel, grain, fertilizer, coal, coke, ore, building materials, large-dimension cargoes, TEU and FEU containers of international standard in holds, and dangerous cargoes that don't require of power ventilation and intended for operation in tug-barge combination.
| # | Name | Value |
|---|---|---|
| 1. | Main dimensions | |
| Length overall, m | 116.82 | |
| Length by DWL, m | 113.98 | |
| Breadth overall, m | 17.20 | |
| Breadth scantlings, m | 17.0 | |
| Depth at midship, m | 5.50 | |
| L x B x H | 116.82 x 17.20 x 5.50 = 11 051 | |
| 2. | Draught on DWL, m | 3.20 |
| 3. | Maximal draught, m | 3.60 |
| 4. | Deadweight at draught d = 3.20 / 3.40 / 3.60 m in river (about), t  |
	4554 / 4939 / 5325 |
| 5. | Number of cargo holds | 2 |
| 6. | Cargo holds capacity (about), m³ | 8065 |
| 7. | Double bottom distributed load intensity, t/m² | 5.5 |
| 8. | Shipping Register of Ukraine class | K   B1 |

| 9. | Bow thruster, kW | 230 | 10. | GT | 4138 |
 B1
