PROJECT RDB06

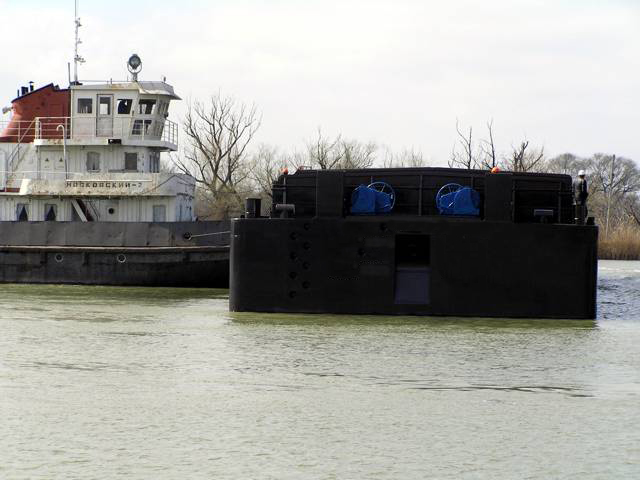

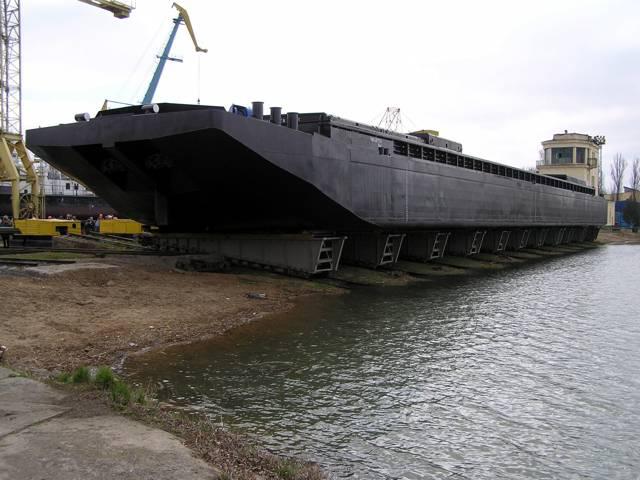

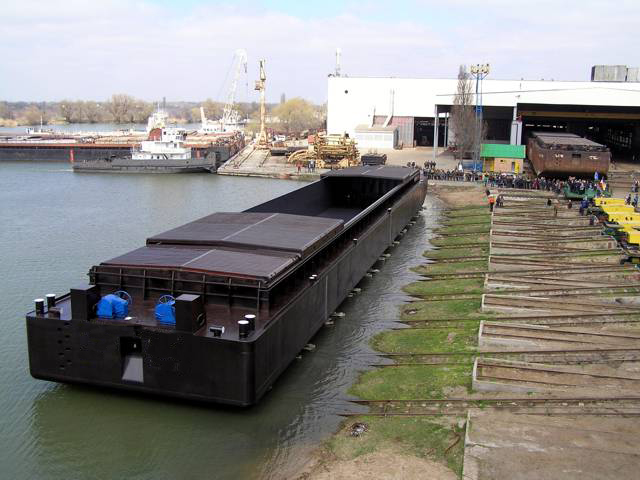

2000 t cargo capacity non-self-propelled river barge
Purpose - carrying of carrying of the general and bulk cargoes including grain for waterways Danube - Main - Rhine system.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 76.02 | |
| Length, m | 76.0 | |
| Breadth overall, m | 11.44 | |
| Breadth, m | 11.40 | |
| Depth, m | 3.20 | |
| L x B x H | 76.02 x 11.44 x 3.20 = 2 783 | |
| Air draft from BL to an upper edge of non-removable parts (not greater than), m |
5.30 | |
| 2. | Draught on DWL, m | 3.0 |
| 3. | Light draught (mean), m | 0.56 |
| 4. | Cargo carrying capacity (about), t | 2000 |
| 5. | Number of cargo holds | 1 |
| 6. | Cargo hold capacity, m³ | 2228 |

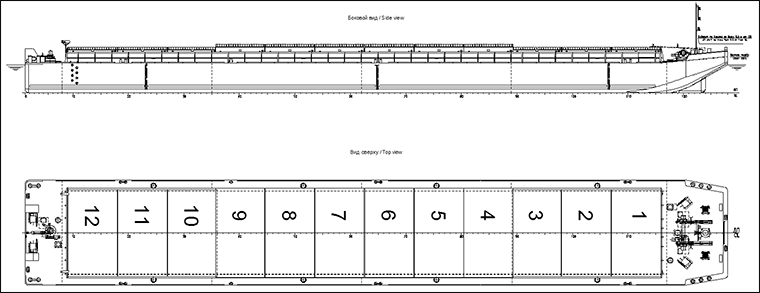

| 7. | Hatch covers | telescopic type with shifted manually covers |
| 8. | BV class | I3/3E  side tank vessel loading and unloadingin two runs /NP Nl2 ice |
