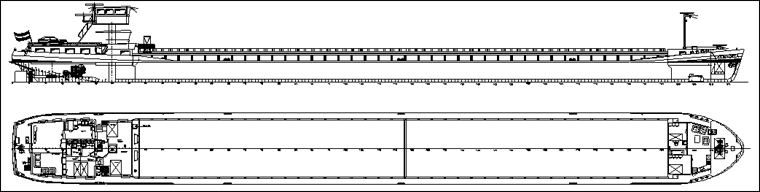

PROJECT DRL1080

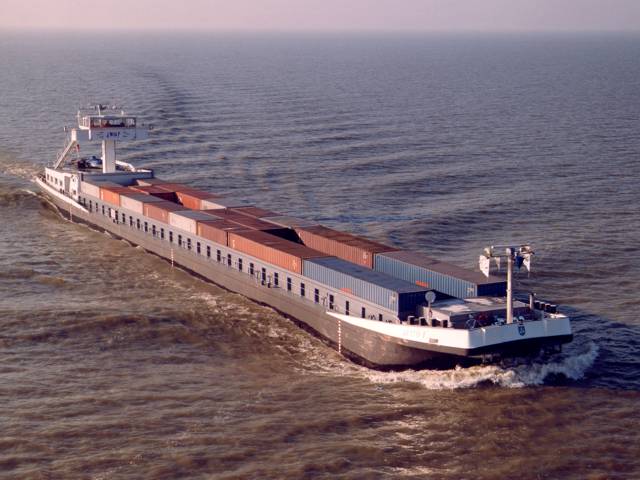

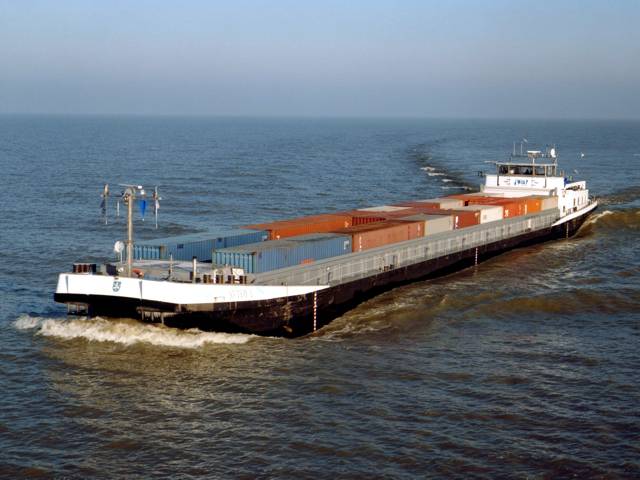

2450 DWT river-going multipurpose vessel for inland European waterways



							Purpose - carrying of the general and bulk cargoes for inland European waterways.
| # | Name | Value |
|---|---|---|
| 1. | Main dimension | |
| Length overall, m | 110.0 | |
| Length, m | 109.26 | |
| Breadth overall, m | 10.80 | |
| Breadth, m | 10.76 | |
| Depth, m | 3.20 | |
| L x B x H | 110.0 x 10.80 x 3.20 = 3 802 | |
| 2. | Draught on DWL, m | 3.18 |
| 3. | Deadweight at DWL draught, t | 2450 |
| 4. | Number of cargo holds | 1 |
| 5. | Cargo hold dimension (l x b x h), m | 80.50 x 10.45 x 4.60 (max) - 4.12 (min) |
| 6. | Cargo hold capacity, m³ | 3150 |
| 7. | ME power, kW | 1 x 1300 |
