PROJECT CC1700

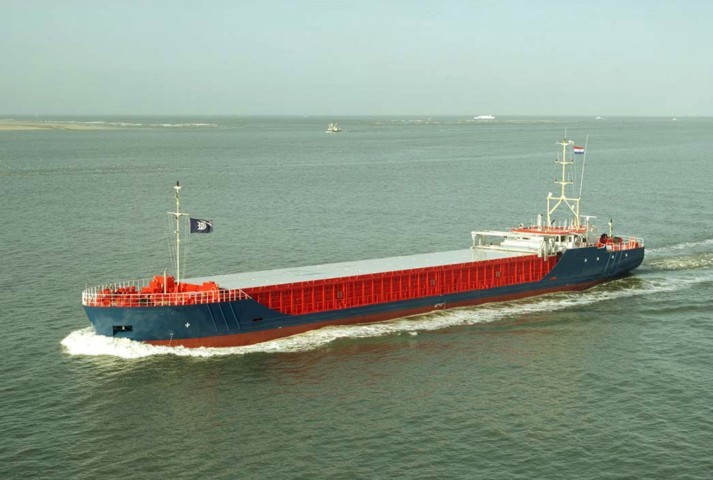

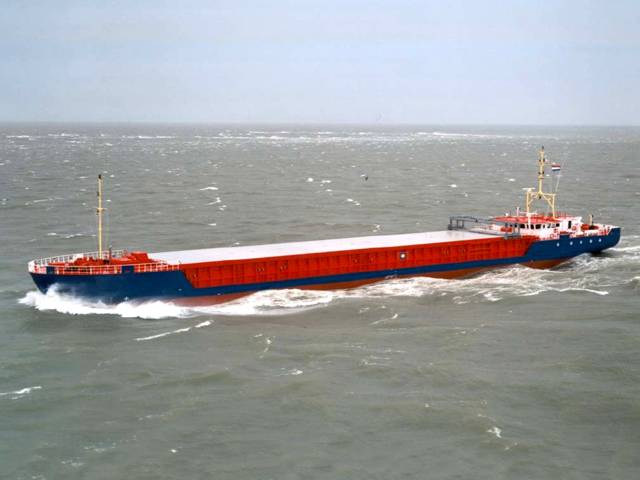

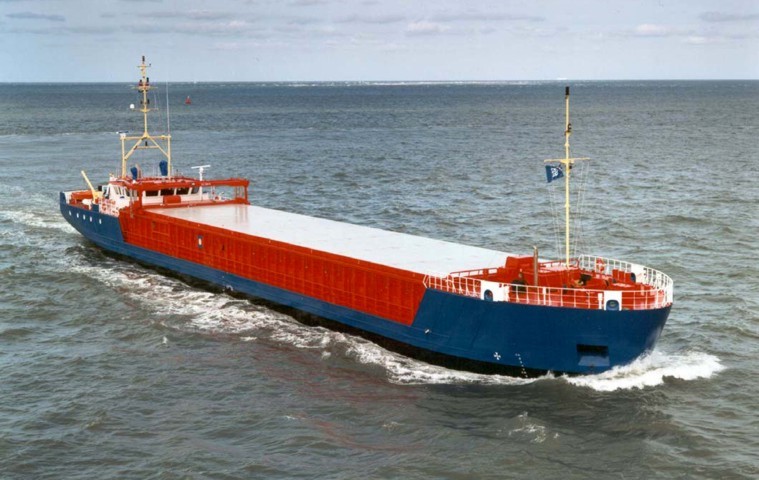

1750 DWT multipurpose dry-cargo vessel


Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes.


Laying of the keel Laid down Delivery Years of construction
    4 -2005


# Name Value
1. Main dimension
Length overall, m 82.225
Breadth overall, m 11.40
Breadth, m 11.30
Depth, m 4.45
L x B x H 82.225 x 11.40 x 4.45 = 4 172
Air draft at draught d = 3.43 m, m 9.80
2. Draught on DWL, m 3.43
3. Deadweight at DWL draught, t 1750
4. Number of cargo holds 1
5. Cargo hold dimension (l x b x h), m 51.10 x 9.30 x 7.10
6. Cargo hold capacity, m³ 2985
7. Ballast tanks capacity, m³ 1140
8. LRS class 100 A1,
LMC, UMS
9. ME power, kW 1 x 1020
