PROJECT BC14

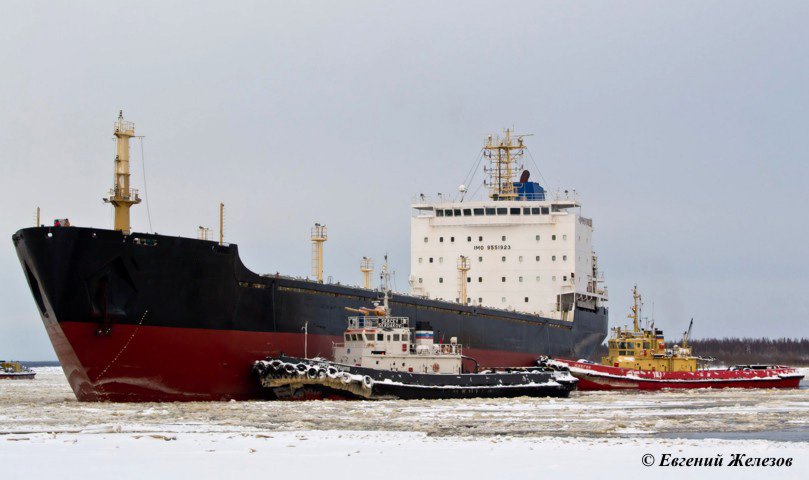

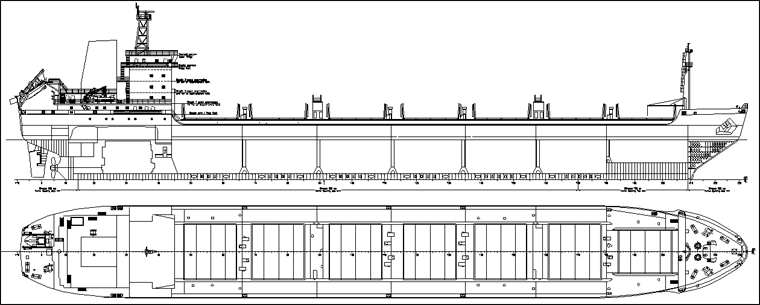

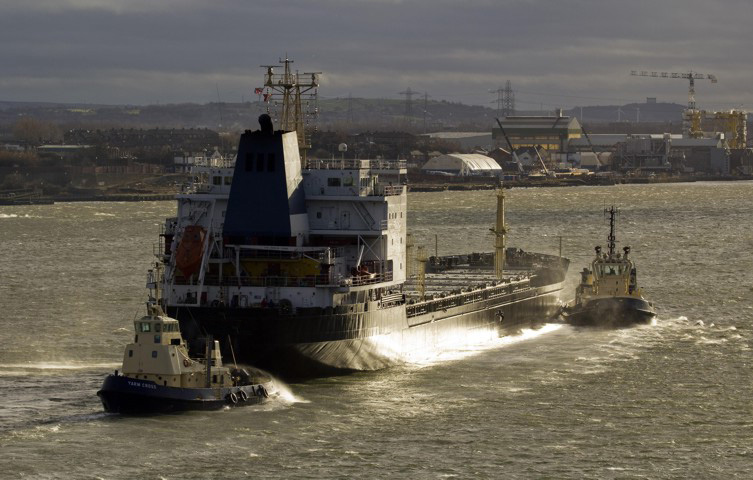

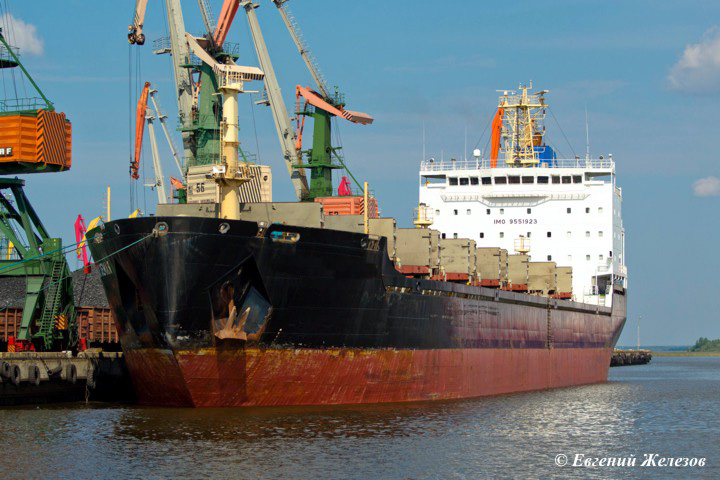

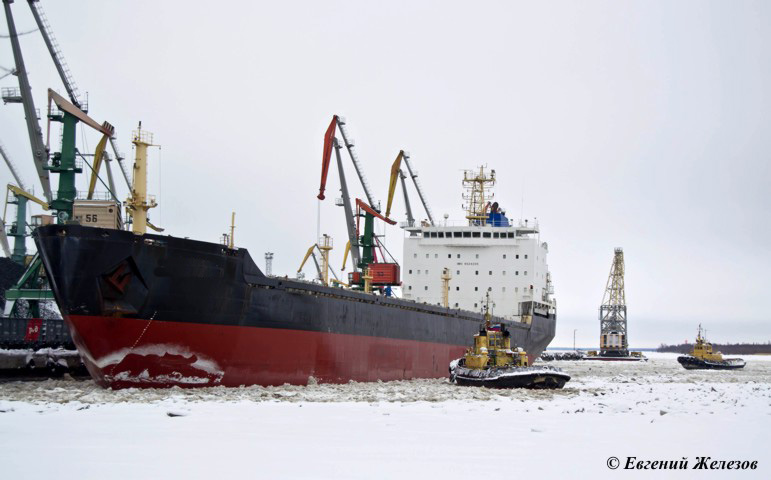

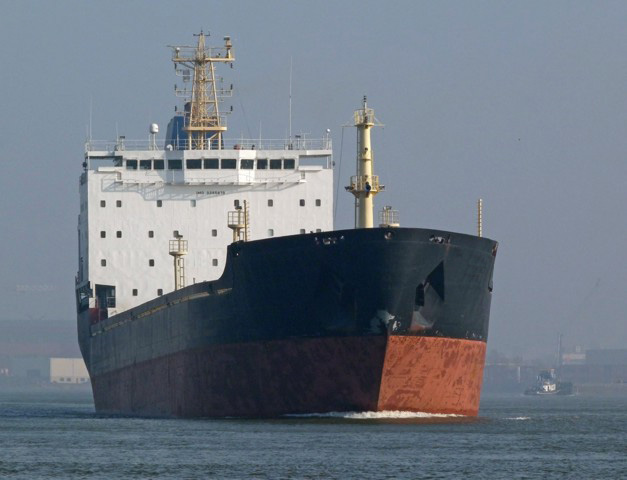

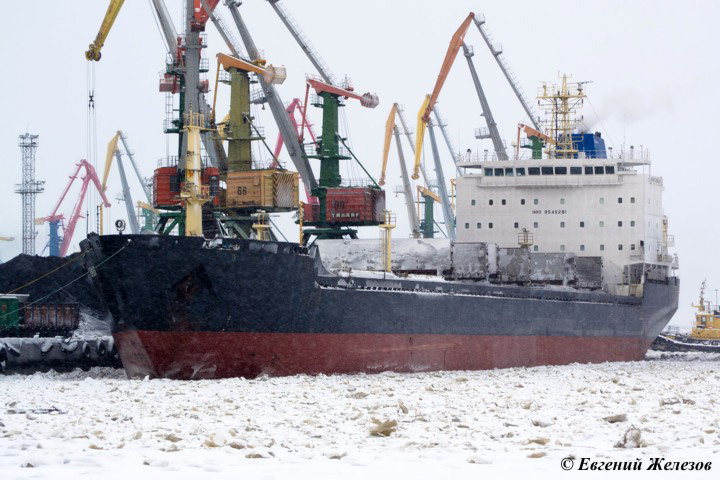

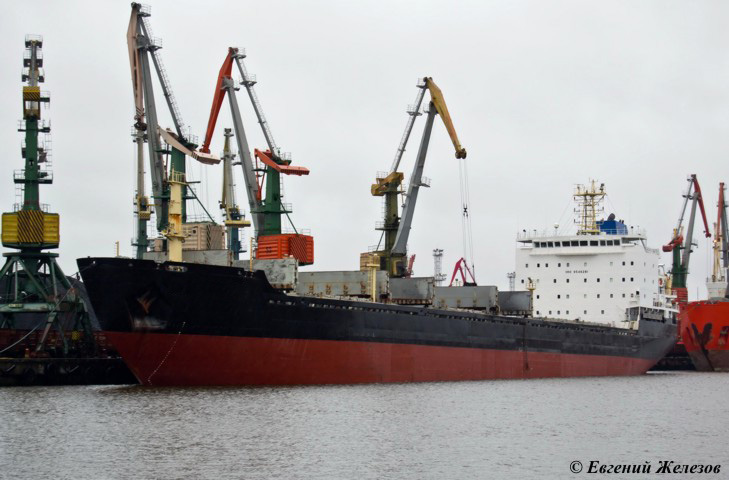

23645 DWT bulk carrier with ice category LU4

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21 Thumbnail 22 Thumbnail 23

Purpose - carrying of the bulk cargoes, non-liquified ore concentrates, grain, containers of international standard, and dangerous cargoes of classes 1, 1.4S, 2, 3, 4, 5, 6, 8, 9 by IMDG Code and Appendix B of the BC Code.

# Name Value
1. Main dimensions
Length overall, m 142.0
Length scantlings, m 136.30
Breadth overall, m 18.20
Breadth scantlings, m 18.0
Depth, m 6.0
L x B x H 142.0 x 18.20 x 6.0 = 15 506
2. Draught on SWL, m 4.767
3. Deadweight at SWL draught, t 8023
4. Deadweight at sea at draught d = 4.50 m, t 7398
5. Endurance, days 20
6. Number of cargo holds 4
7. Cargo holds capacity, m³ 10929
8. Container capacity (holds / deck), TEU 312 (232 / 80)
9. Ballast tanks capacity, m³ 3131
10. Stowage factor, m³/t:
at draft d = 4.767 m (at sea) 1.44
at draft d = 4.50 m (at sea) 1.58
11. RS class KM LU1 II A1
12. ME power, kW 2 x 1520
13. Rudder and propeller complex 2 x Rudderproppellers
14. Bow thruster, kW 350
15. Auxiliary engines:
diesel-generators, kW 2 x 146
shaft generators, kW 2 x 400
emergency diesel-generator, kW 1 x 81
16. Crew / berth,
1. Main dimension
Length overall, m 180.50
Length between PP, m 173.28
Breadth, m 22.86
Depth, m 13.50
L x B x H 180.50 x 22.86 x 13.50 = 55 704
2. Draught on SWL, m 9.91
3. Deadweight at SWL draught, t 23645
4. Endurance, days 50
5. Range (with full / normal stores), nautical miles 9000 / 6000
6. Cargo carrying capacity (full / normal stores), t 21200 / 22100
7. Number of cargo holds 7
8. Cargo holds capacity, m³ 25444
9. Container capacity (holds / deck), TEU 512 (332 / 180)
10. Ballast tanks capacity, m³ 9559
11. RS class KM Arc4 AUT2 Bulk carrier BC-A(ESP)
12. ME power, kW 1 x 8243
13. Auxiliary engines:
diesel-generators, kW 4 x 400
emergency / harbour diesel-generator, kW 1 x 85
14. Boilers 2 x 4 t/h +
1 x 2.7 t/h (exhaust gas)
15. Crew / berth, pers. 26 / 28
16. Speed with full load condition, knots 15.2
