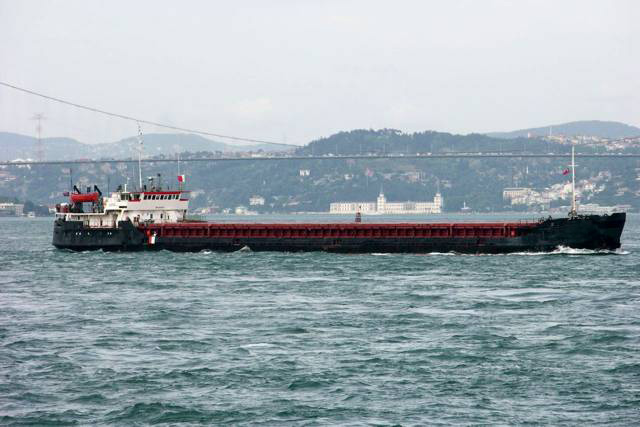

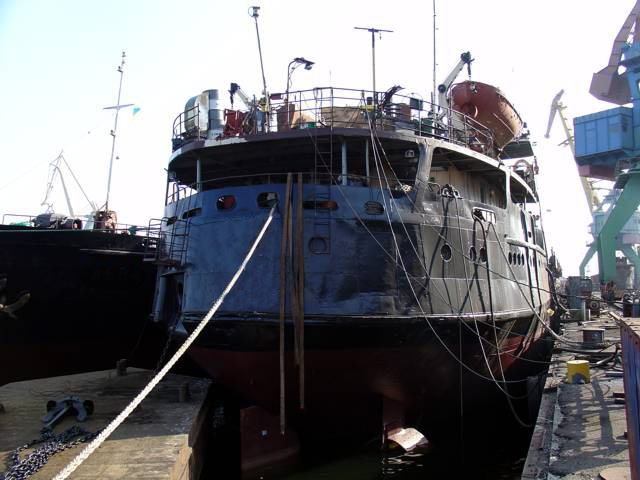

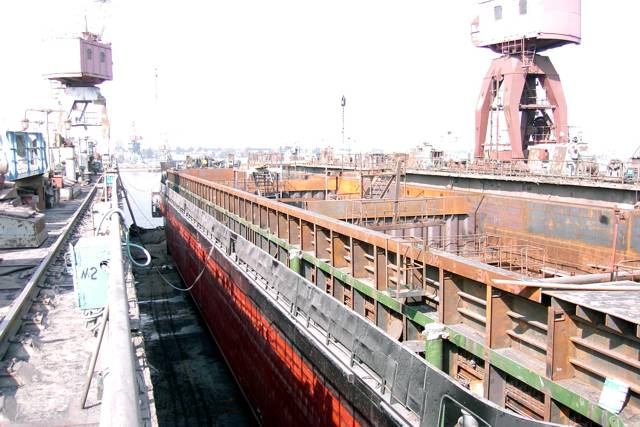

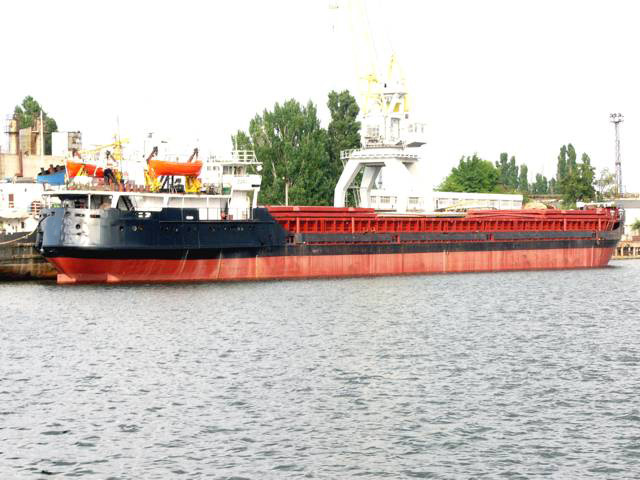

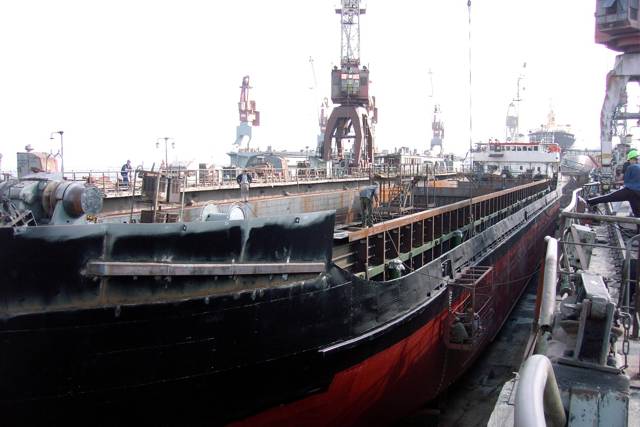

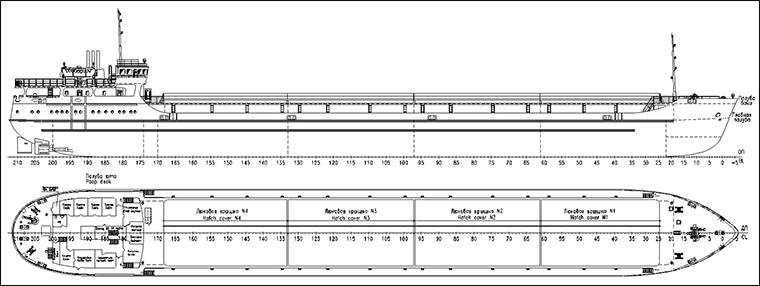

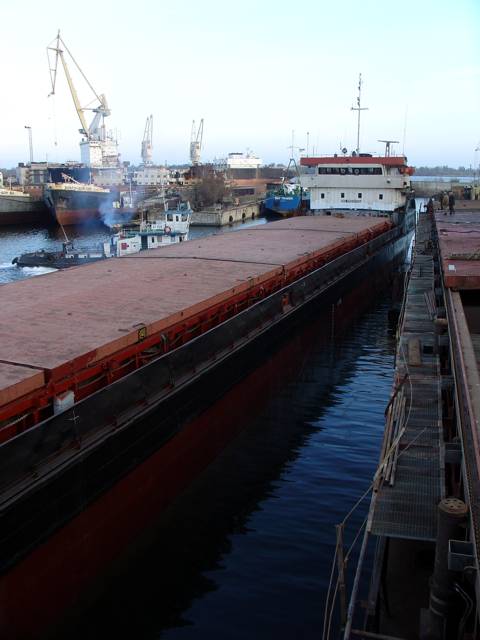

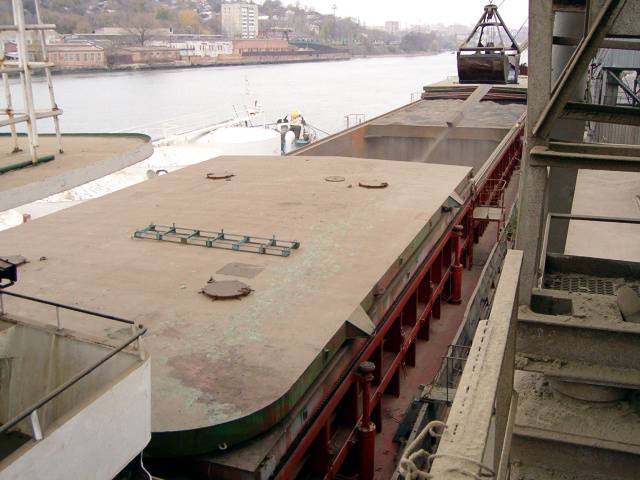

PROJECT 2-95 MODERNIZATION

4361 / 3053 DWT dry-cargo vessel


Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes, including grain and timber.

# Name Value
1. Main dimension
Length overall, m 114.0
Length between PP, m 110.0
Breadth overall, m 13.23
Breadth, m 13.0
Depth, m 5.50
L x B x H 114.0 x 13.23 x 5.50 = 8 295
2. Draught on SWL, m 4.49
3. Draught in river, m 3.60
4. Ballast draft, m 2.46
5. Deadweight at sea at SWL draught, t 4361
6. Deadweight in river at draught d = 3.60 m, t 3053
7. Endurance, days 15
8. Number of cargo holds 4
9. Cargo holds dimension (l x b x h), m 19.65 x 11.20-9.52 x 7.12
19.80 x 11.20-9.52 x 7.12
19.80 x 11.20-9.52 x 7.12
19.80 x 11.20-9.52 x 7.12
10. Cargo holds capacity, m³ 5677
11. Ballast tanks capacity, m³ 1983
12. RS class KM L4 IISP (L4 at d ≤ 3.856 m)
13. ME powers, kW 2 x 515
14. Diesel-generators, kW 2 x 100
15. Crew / berth, pers. 20 / 20
16. Speed, knots 10
