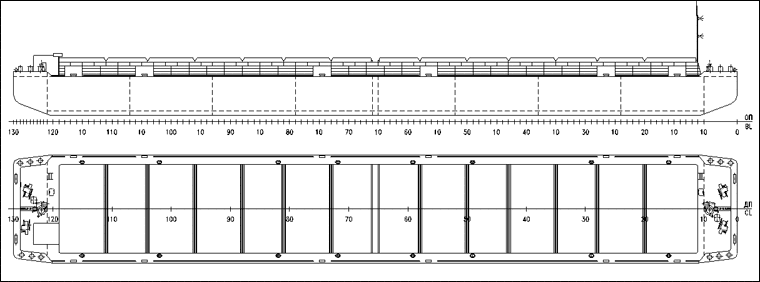

PROJECT 1635ZM

1945 t cargo capacity dry-cargo non-self-propelled vessel


Purpose - carrying of grain and temporally storage.

# Name Value
1. Main dimension
Length, m 73.40
Breadth overall, m 11.02
Breadth, m 11.0
Depth, m 3.90
L x B x H 73.40 x 11.02 x 3.90 = 3 155
Air draft from BL to an upper edge
of non-removable parts (not greater than), m
5.50
2. Draught on DWL from BL, m 2.97
3. Draught on DWL on draft marks, m 3.13
4. Light draught on draft marks (mean), m 0.74
5. Cargo carrying capacity (about), t 1945
6. Number of cargo holds 2
7. Cargo holds capacity, m³ 2960
8. Hatch covers pontoon type
9. RS class K LU1 IIISP
