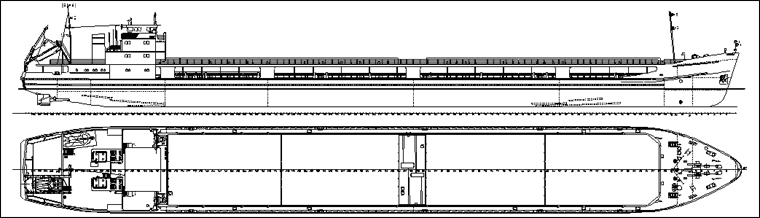

PROJECT 05074M MODERNIZATION

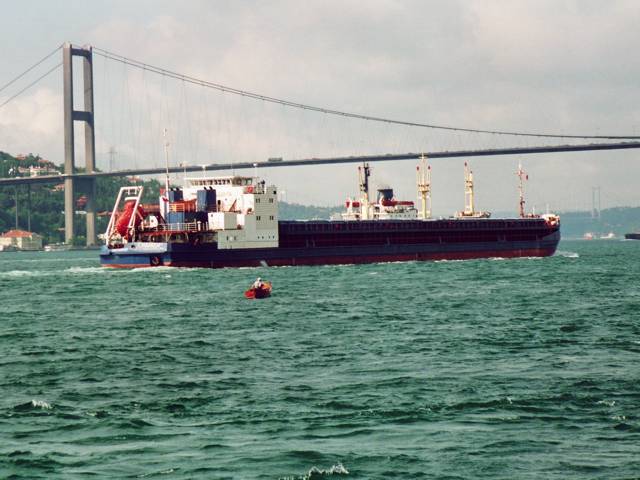

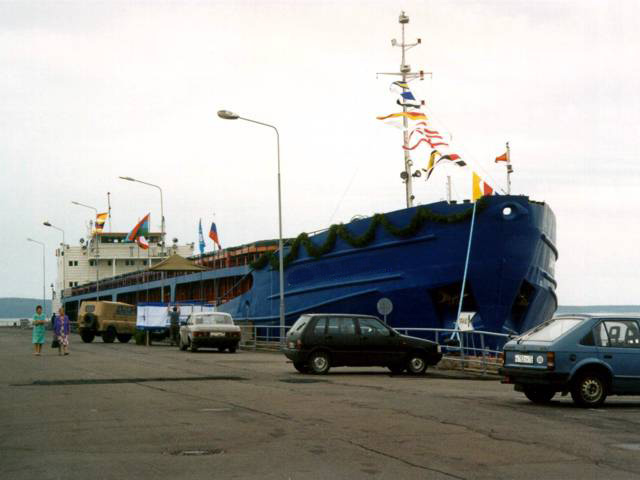

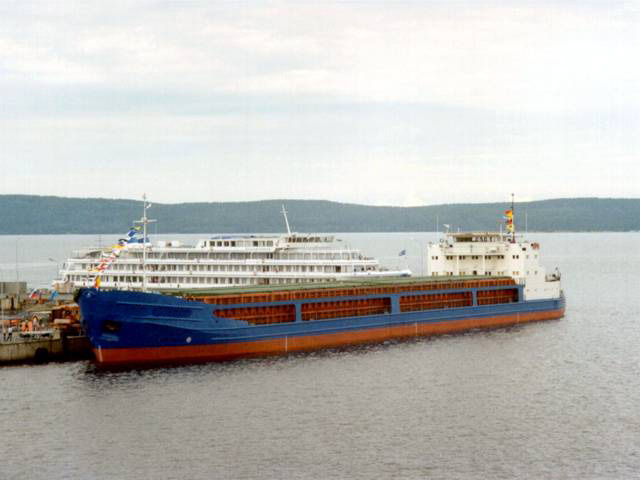

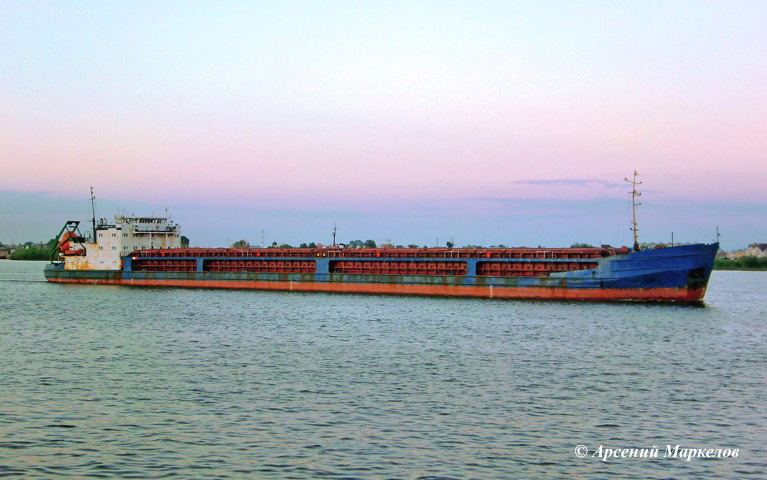

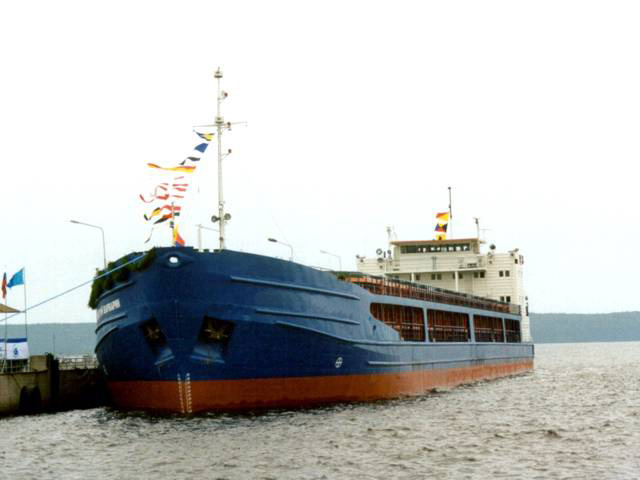

5375 / 4871 DWT multipurpose river-sea dry-cargo vessel







Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes, including grain, timber, containers of internationall standard in holds.
# | Name | Value |
---|---|---|
1. | Main dimension | |
Length overall, m | 138.30 | |
Length, m | 135.0 | |
Breadth overall, m | 16.70 | |
Breadth, m | 16.50 | |
Depth, m | 5.50 | |
L x B x H | 138.30 x 16.70 x 5.50 = 12 703 | |
Air draft from WL at draught d = 3.20 m, m | 13.20 | |
2. | Draught (in see / in river), m | 3.754 / 3.60 |
3. | Deadweight (in see / in river), t | 5375 / 4871 |
4. | Endurance, days | 15 |
5. | Range, nautical miles | 3600 |
6. | Number of cargo holds | 4 |
7. | Cargo holds capacity, m³ | 9358 |
8. | Ballast tanks capacity, m³ | 2200 |
9. | RS class | KM ![]() |
10. | ME power, kW | 2 x 890 |
11. | Bow thruster, kW | 95 |
12. | Auxiliary engines: | |
diesel-generators, kW | 2 x 115 | |
emergency diesel-generator, kW | 1 x 50 | |
13. | Boilers | 1 x 0.4 t/h + 2 x 0.2 t/h (exhaust gas) |
14. | Crew, pers. | 16 |
15. | Speed, knots | 10 |
