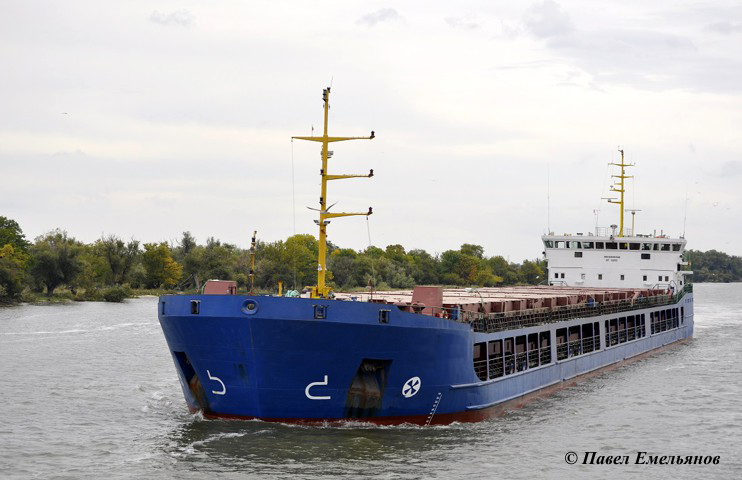

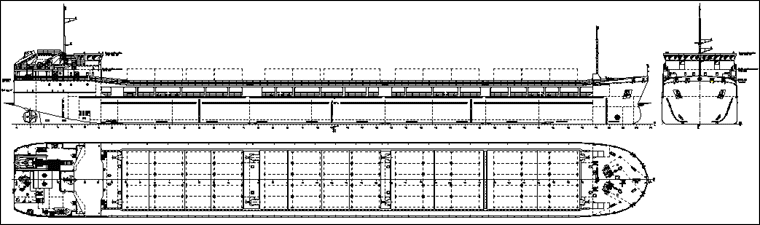

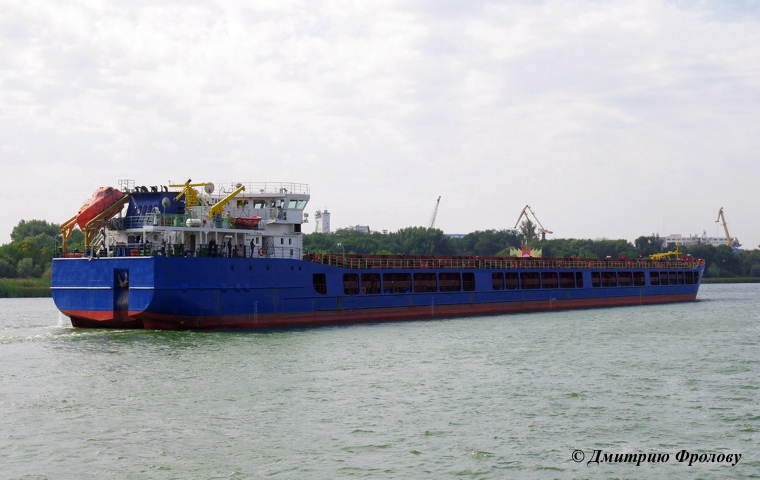

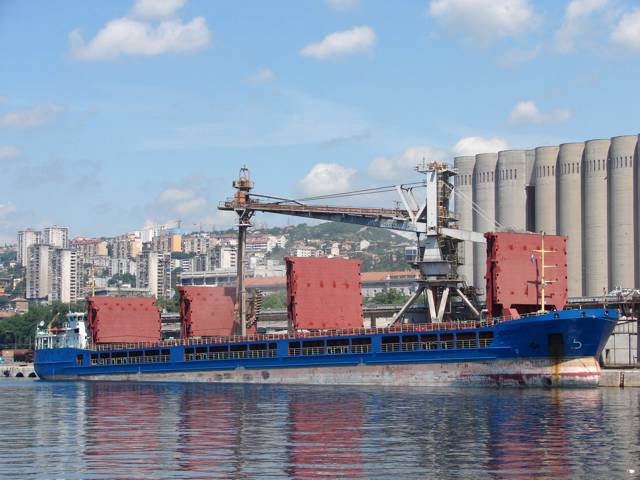

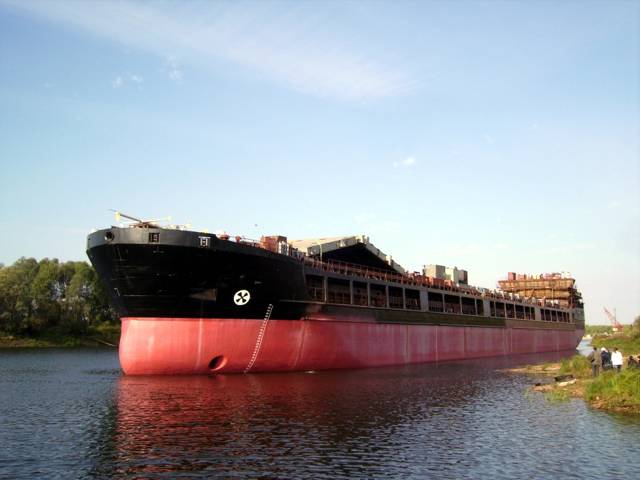

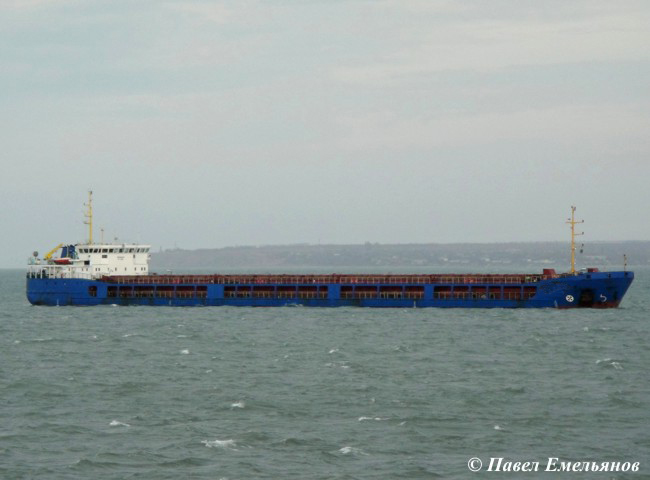

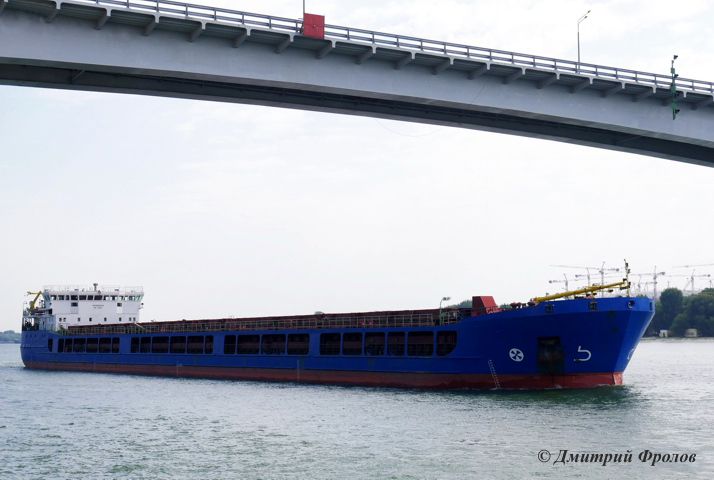

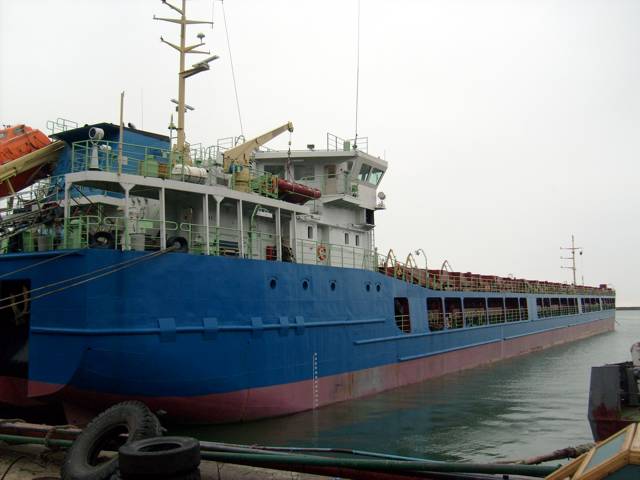

PROJECT 006RSD02
7094 / 4696 DWT Multipurpose river-sea dry-cargo vessel
Purpose - sea and mixed (river-sea) carrying of the general and bulk cargoes, including TEU and FEU, grain, timber, coal and dangerous cargoes 1.4S, 2, 3, 4, 5, 6, 8, 9 classes.
# | Name | Value |
---|---|---|
1. | Main dimension | |
Length overall, m | 139.63 | |
Length, m | 133.84 | |
Breadth overall, m | 16.70 | |
Breadth, m | 16.50 | |
Depth, m | 6.0 | |
L x B x H | 139.63 x 16.70 x 6.0 = 13 991 | |
Air draft from WL at draught d = 3.20 m, m | 13.20 | |
2. | Draught (at sea / in river), m | 4.60 / 3.60 |
3. | Ballast draft, m | 3.40 |
4. | Deadweight (at sea / in river), t | 7094 / 4696 |
5. | Endurance (at sea / in river), days | 15 / 10 |
6. | Range, nautical miles | 4000 |
7. | Cargo carrying capacity (at sea / in river), t | 6638 / 4488 |
8. | Number of cargo holds | 4 |
9. | Cargo holds capacity, m³ | 10870 |
10. | Container capacity (holds / deck): | |
TEU | 280 (210 / 70) | |
FEU | 120 (90 / 30) | |
11. | Ballast tanks capacity, m³ | 3923 |
12. | RS class | KM LU2 IISP A1 |
13. | ME power, kW | 2 x 1150 |
14. | Rudder and propeller complex | 2 x Rudderproppellers |
15. | Bow thruster, kW | 160 |
16. | Auxiliary engines: | |
diesel-generators, kW | 3 x 160 | |
emergency diesel-generator, kW | 1 x 100 | |
17. | Boilers | 1 x 1 t/h + 2 x 0.5 t/h (exhaust gas) |
18. | Crew / berth, pers. | 12 / 14 |
19. | Speed, knots | 10.5 ±0.3 |
