PROJECT 005RSD03

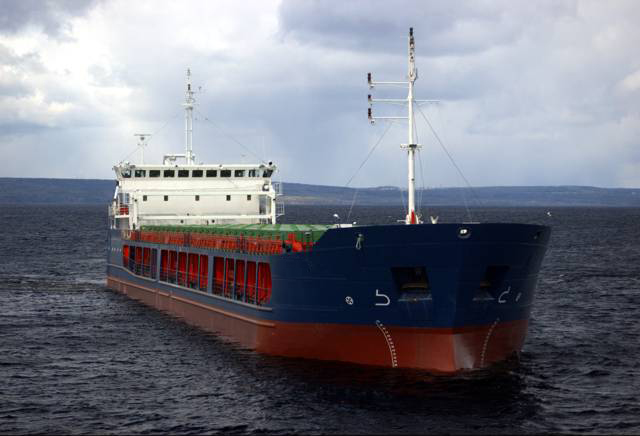

5467 / 3308 DWT multipurpose dry-cargo vessel

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21 Thumbnail 22 Thumbnail 23

Purpose - sea and mixed (river-sea) carrying of the general, bulk, grain, timber and large-dimension cargoes, including TEU and FEU, coal and dangerous cargoes 1, 2, 3, 4, 5, 6.1, 8, 9 classes.

# Name Value

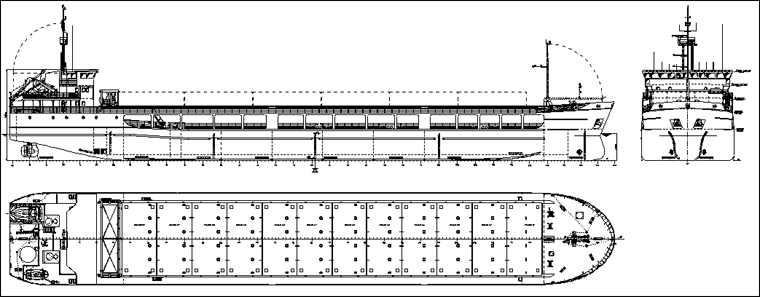

1. Main dimension
Length overall, m 108.33
Length, m 102.20
Breadth overall, m 16.70
Breadth, m 16.50
Depth, m 5.50
L x B x H 108.33 x 16.70 x 5.50 = 9 950
Air draft from WL at draught d = 3.20 m, m 13.20
2. Draught on SWL, m 4.792
3. Draught in river, m 3.60
4. Deadweight at SWL draught, t 5467
5. Deadweight in river at draught d = 3.60 m, t 3308
6. Deadweight in river at draught d = 3.40 m, t 2981
7. Deadweight in river at draught d = 3.20 m, t 2658
8. Endurance, days (at sea / in river) 20 / 15
9. Range, nautical miles 4000
10. Number of cargo holds 3
11. Cargo holds capacity, m³ 7833
12. Container capacity (holds / deck):
TEU 225 (165 / 60)
FEU 105 (75 / 30)
13. Ballast tanks capacity, m³ 2670
14. RS class KM Ice2 R2 AUT3
15. ME power, kW 2 x 1020

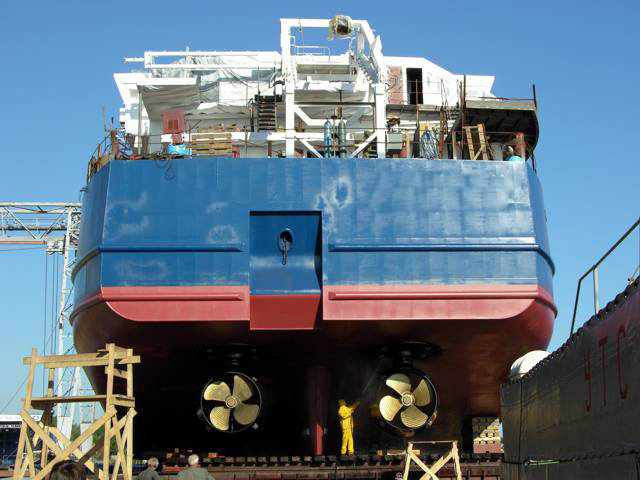

16. Rudder and propeller complex 2 x Rudderpropellers
17. Bow thruster, kW 100
18. Auxiliary engines:
diesel-generators, kW 2 x 160
emergency / harbor diesel-generator, kW 1 x 85
19. Crew / berth, pers. 9 / 11
20. Speed, knots 10.5 ±0.3
