PROJECT 003RSD04/ALB03

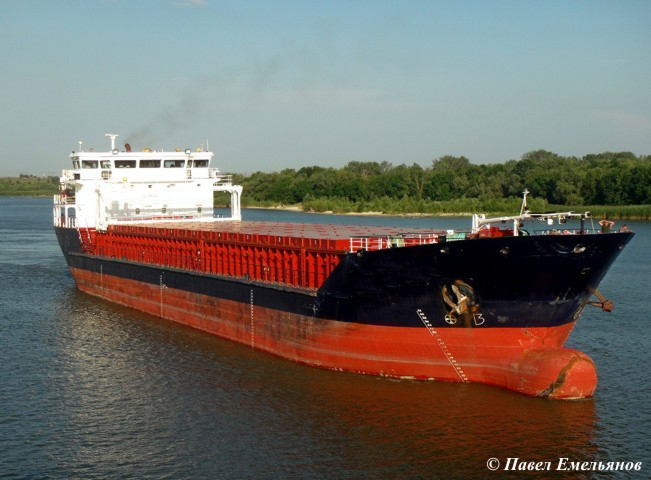

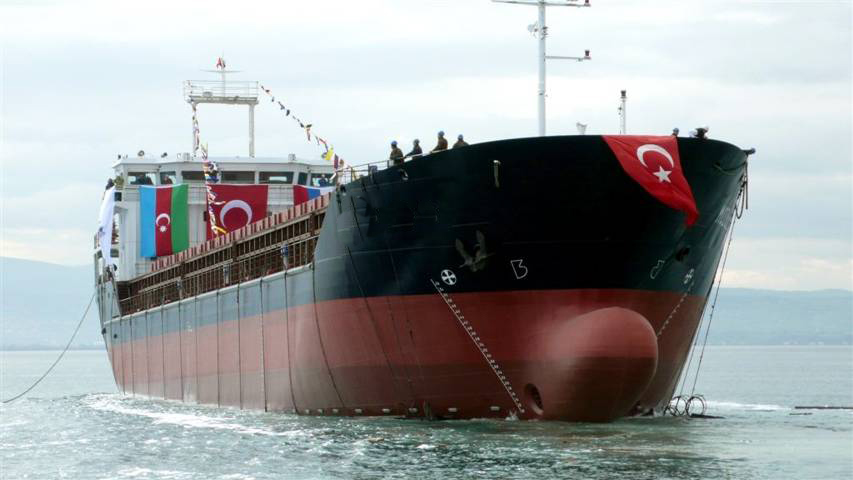

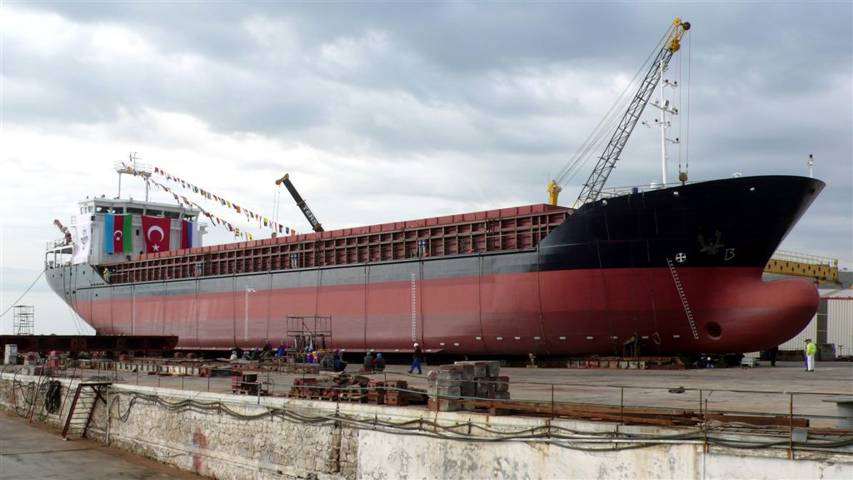

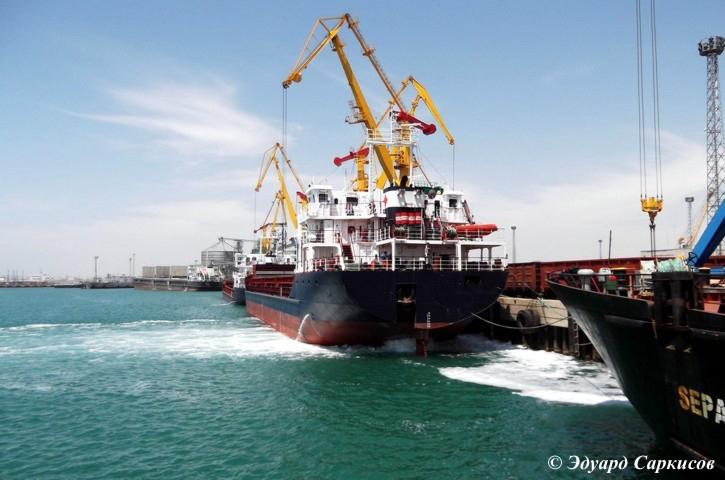

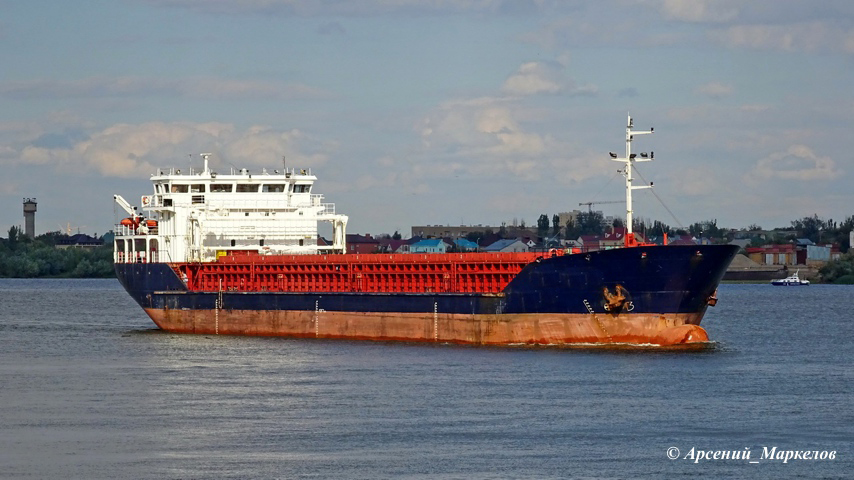

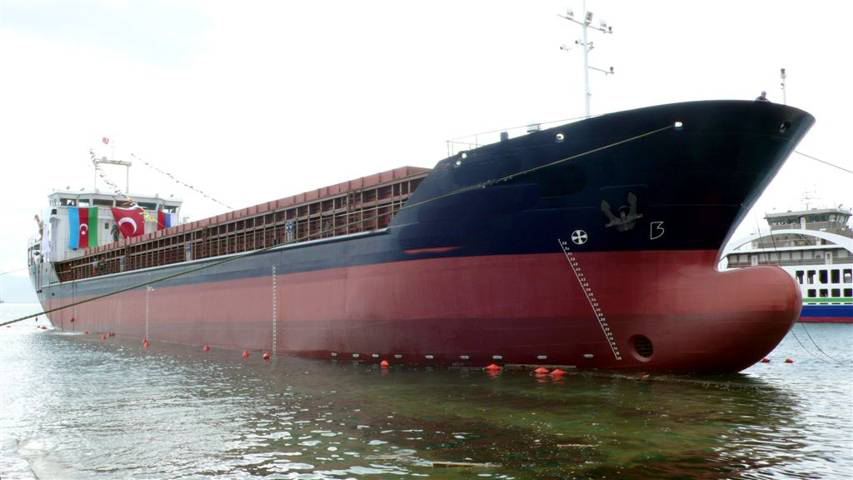

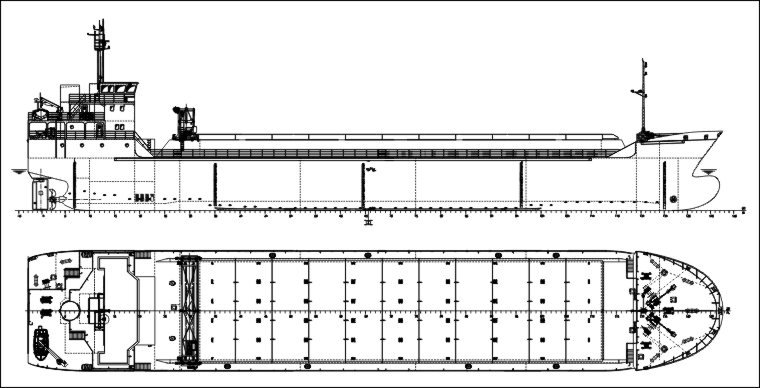

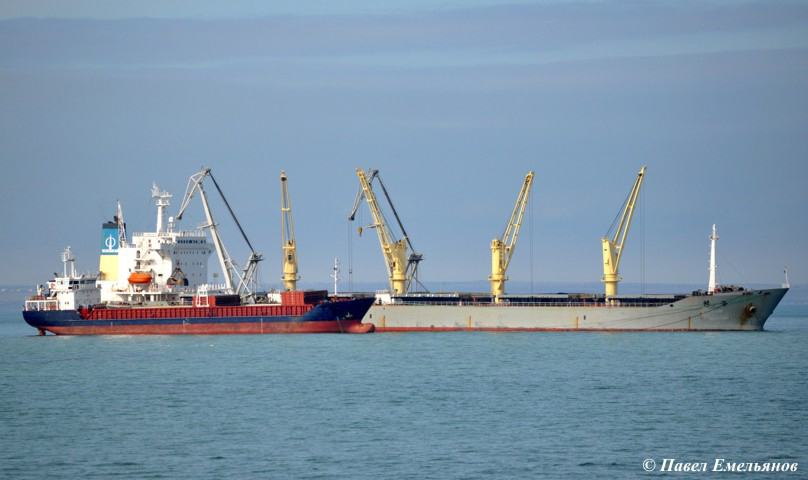

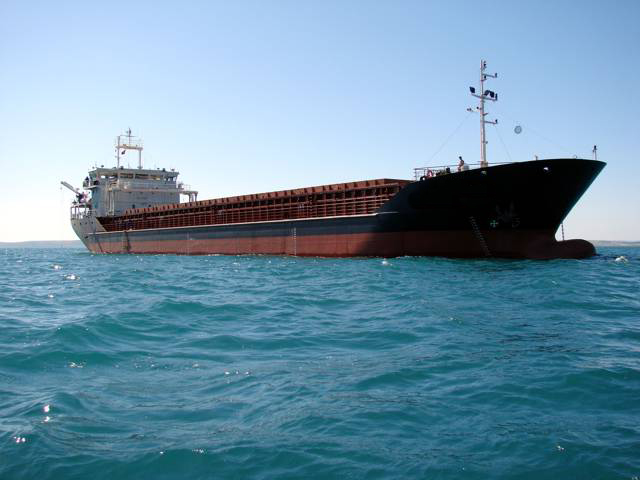

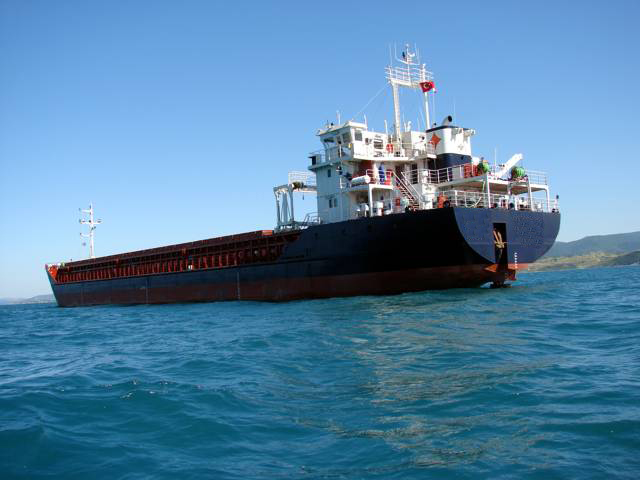

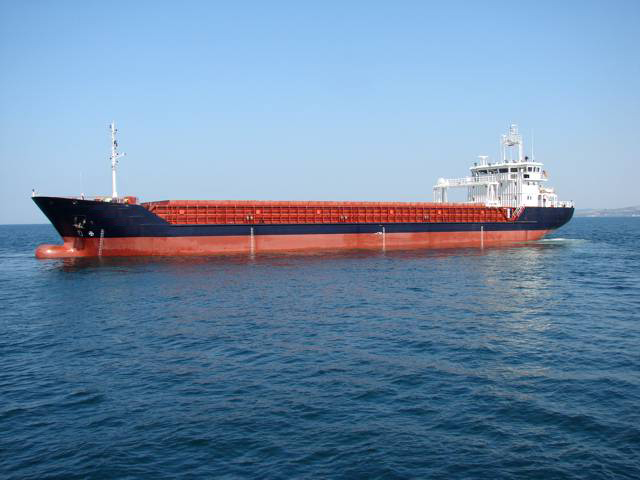

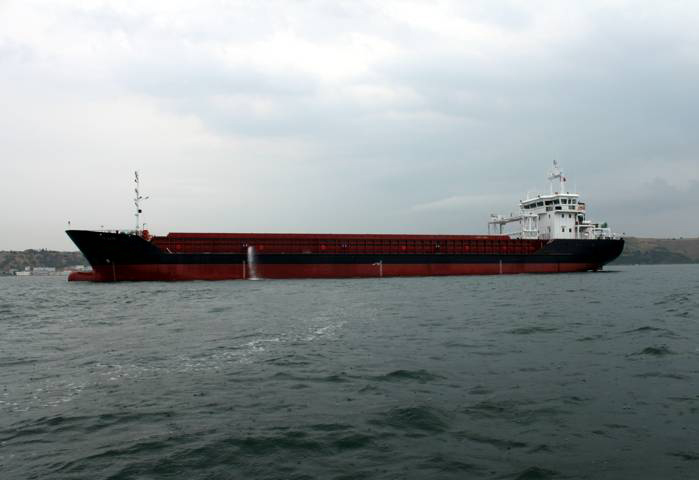

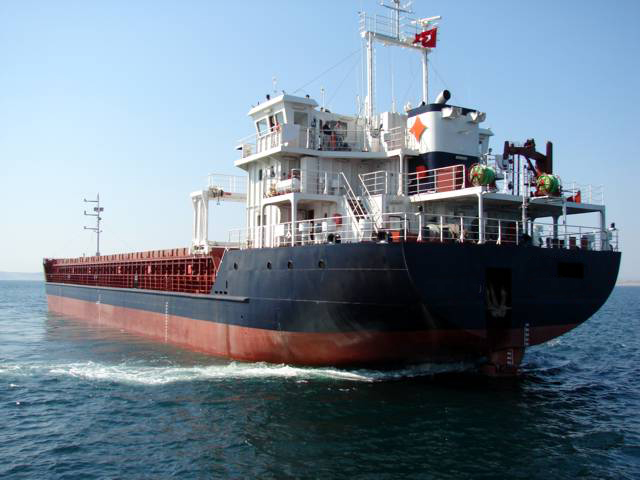

4416 DWT multipurpose dry-cargo vessel of the "Azov three-thousander" class

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15 Thumbnail 16 Thumbnail 17 Thumbnail 18 Thumbnail 19 Thumbnail 20 Thumbnail 21 Thumbnail 22

Purpose - carrying of the general, bulk, timber and large-dimension and heavy-weight cargoes, including TEU and FEU up to 9 feet height.

# Name Value
1. Main dimension
Length overall, m 89.17
Length between PP, m 84.56
Breadth, m 15.60
Depth, m 6.80
L x B x H 89.17 x 15.60 x 6.80 = 9 459
2. Draught on SWL, m 5.286
3. Deadweight at SWL draught, t 4416
4. Number of cargo holds 1
5. Cargo hold capacity, m³ 5486
6. Container capacity (hold / deck), TEU 191 (151 / 40)
7. Ballast tanks capacity, m³ 2066
8. RS class KM Ice3 R1 AUT3
9. ME power, kW 1 x 1850
10. Rudder and propeller complex 1 CPP + 1 rudder
11. Bow thruster, kN 245
12. Auxiliary engines:
diesel-generators, kW 2 x 310
shaft generator, kW 1 x 300
emergency / harbour diesel-generator, kW 1 x 106
13. Crew / berth, pers. 12 / 13
14. Speed (at draft d = 5.286 m and 85% MCR), knots 11.0
