PROJECT 003RSD04/ALB02

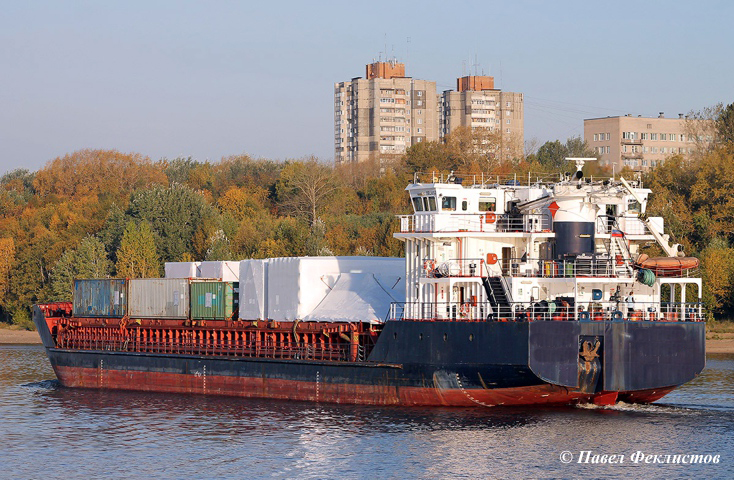

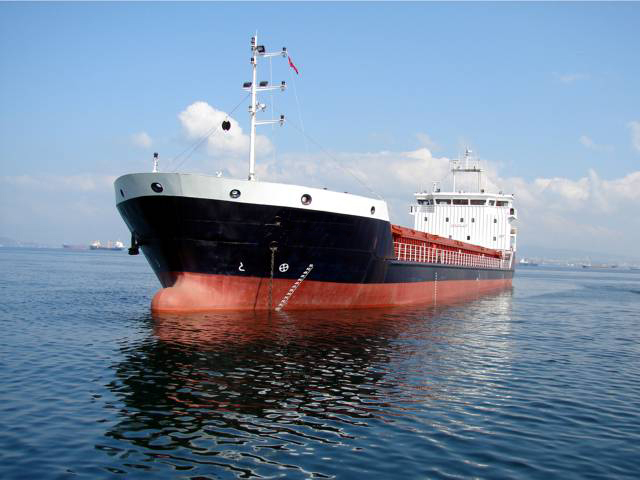

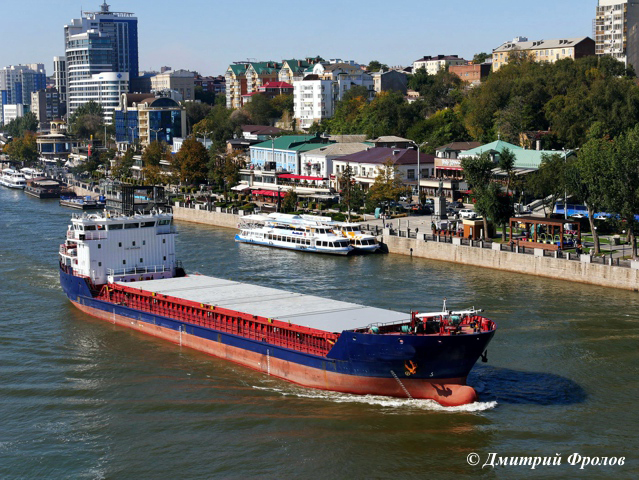

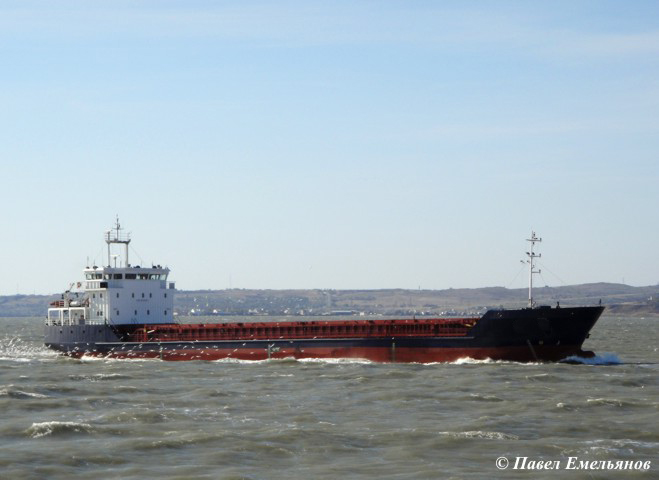

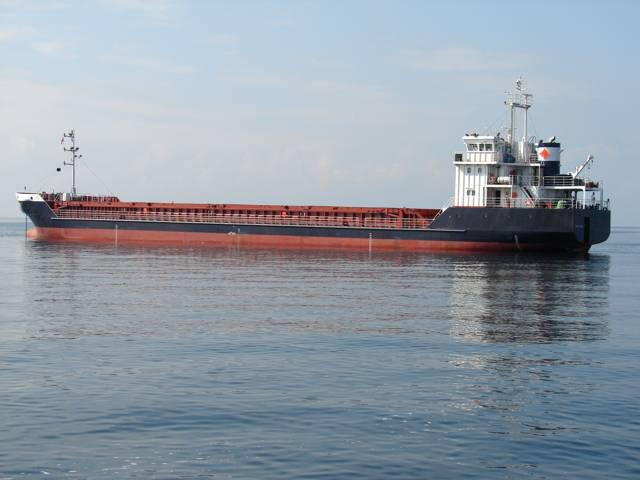

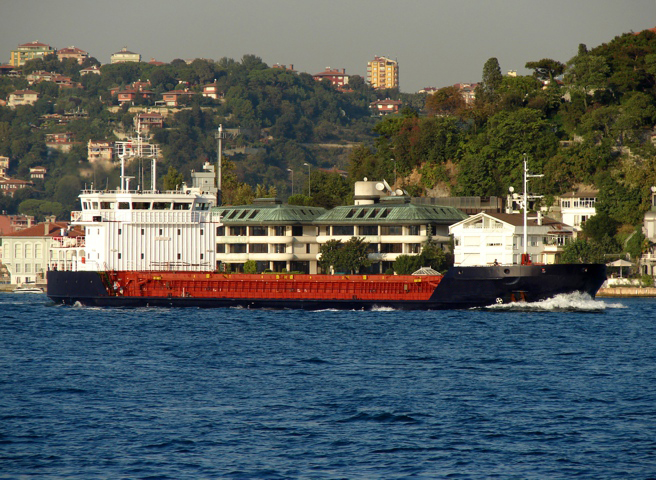

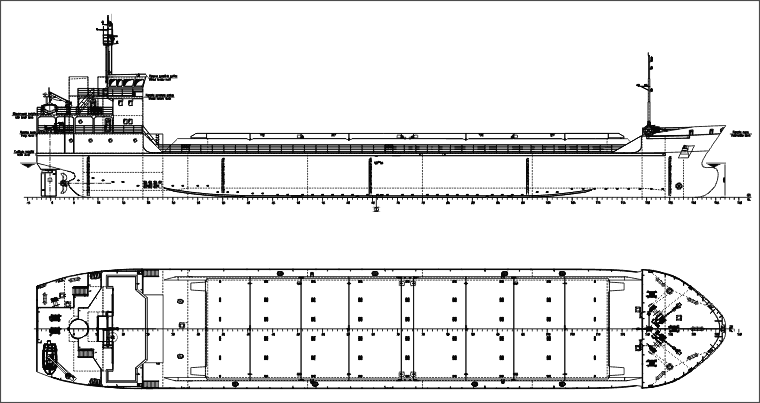

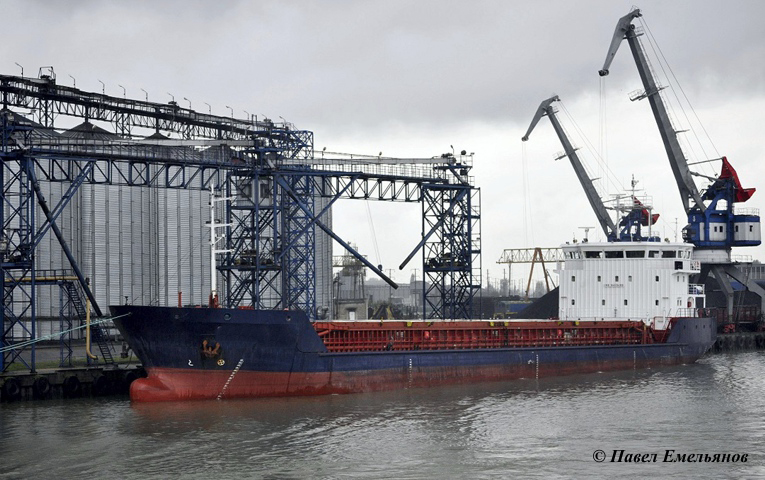

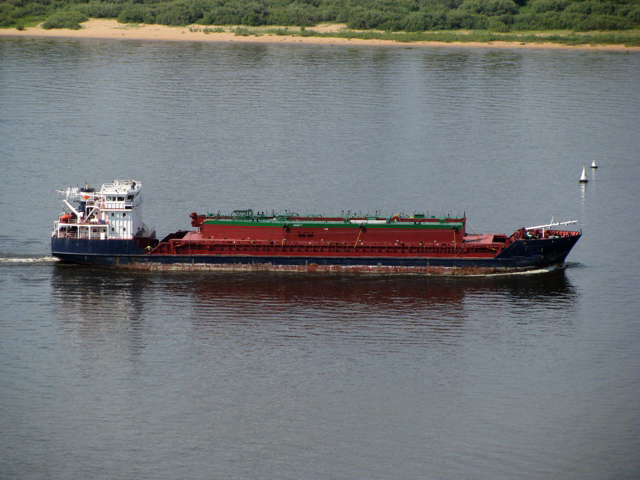

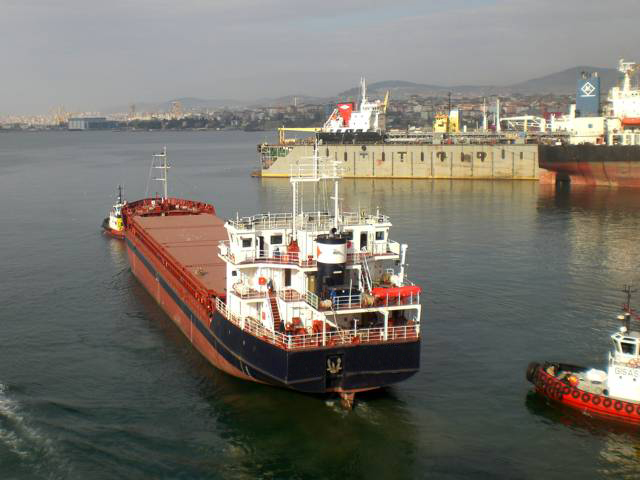

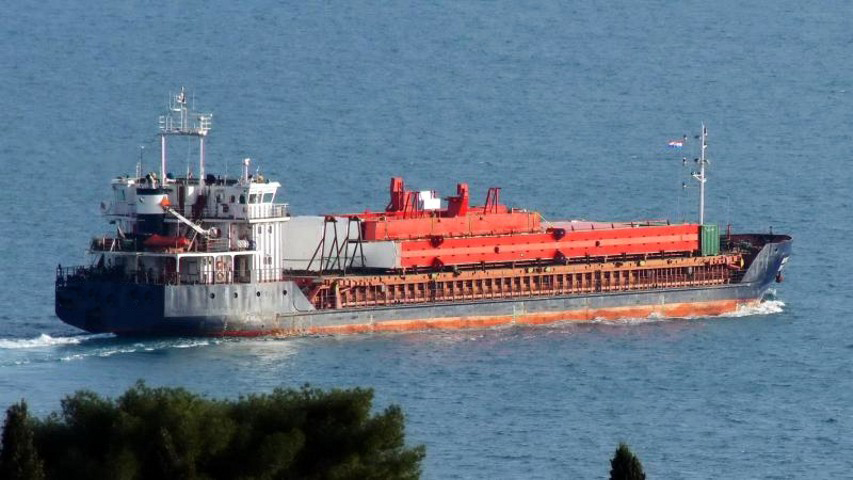

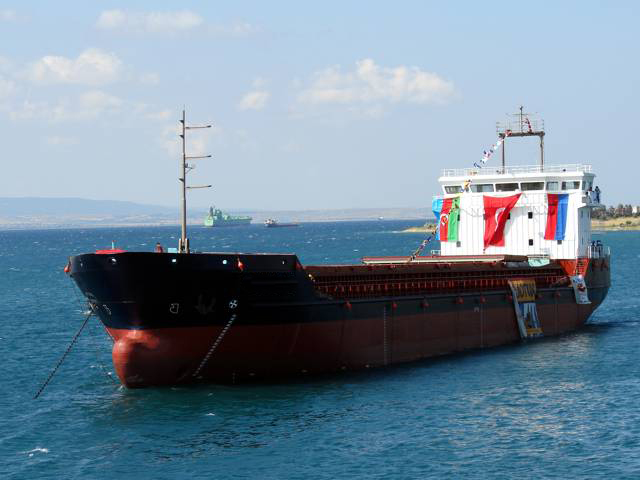

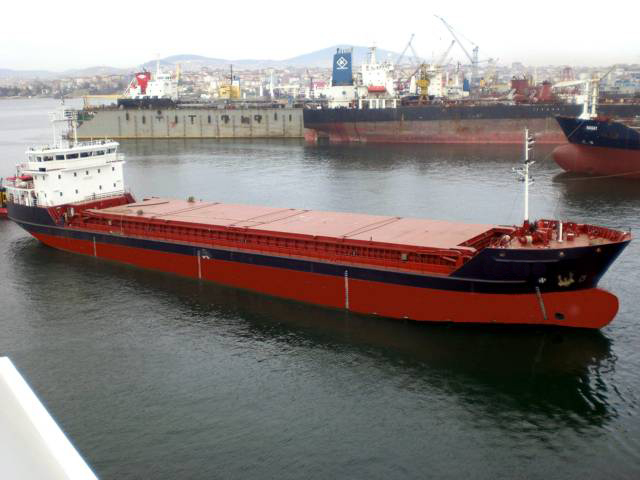

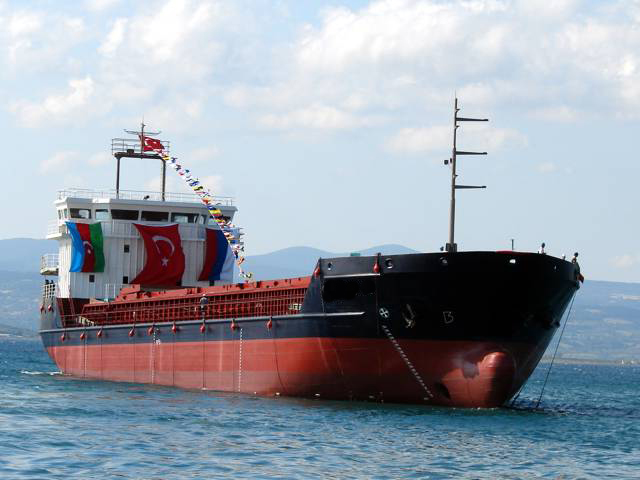

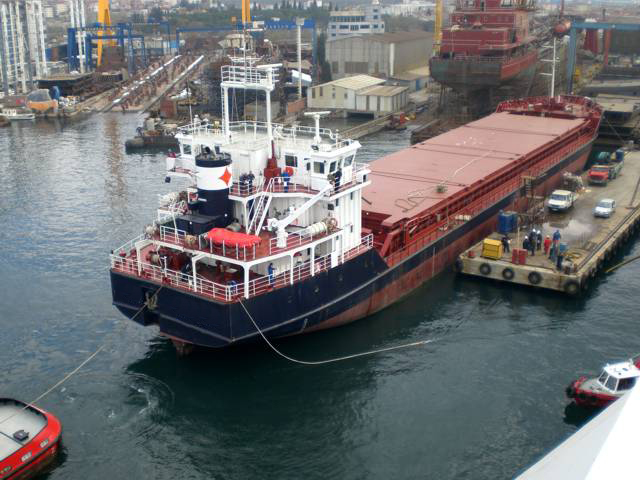

3644 DWT multipurpose dry-cargo vessel of the "Azov three-thousander" class

Main Image
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6 Thumbnail 8 Thumbnail 9 Thumbnail 10 Thumbnail 11 Thumbnail 12 Thumbnail 13 Thumbnail 14 Thumbnail 15

Purpose - carrying of the general, bulk, timber and large-dimension and heavy-weight cargoes, including TEU and FEU up to 9 feet height.

# Name Value
1. Main dimension
Length overall, m 89.85
Length between PP, m 84.80
Breadth, m 15.60
Depth, m 5.75
L x B x H 89.85 x 15.60 x 5.75 = 8 060
2. Draught on SWL, m 4.46
3. Ballast draft, m 3.16
4. Deadweight at SWL draught, t 3644
5. Endurance, days 20
6. Number of cargo holds 1
7. Cargo hold dimension (l x b x h), m 59.0 x 12.70 x 6.40
8. Cargo hold capacity, m³ 4491
9. Container capacity (hold / deck):
TEU 113 (73 / 40)
FEU 55 (35 / 20)
10. Ballast tanks capacity, m³ 2006
11. RS class KM LU2 II A3
12. ME power, kW 1 x 1470
13. Rudder and propeller complex 1 CPP + 1 rudder
14. Bow thruster, kW 170
15. Auxiliary engines:
diesel-generator, kW 1 x 150
emergency diesel-generator, kW 1 x 80
16. Crew / berth, pers. 9 / 11
17. Speed (at 85% MCR), knots 11.0
