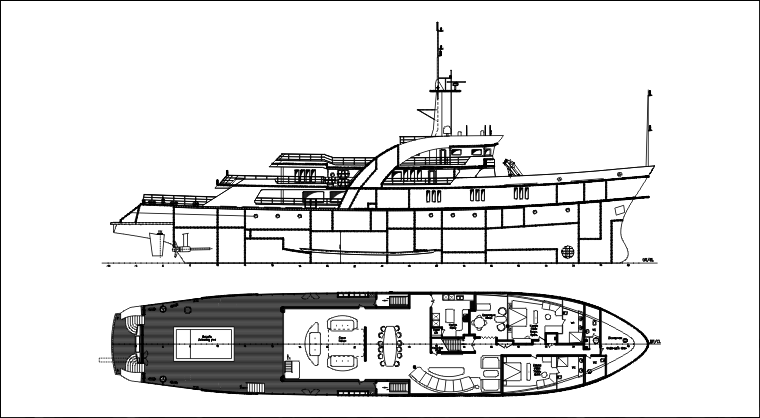

PROJECT PV04

Pleasure vessel


Purpose - transportation of VIP passengers.

# Name Value
1. Main dimension
Length overall, m 60.61
Length between PP, m 51.42
Breadth, m 11.43
Depth, m 6.02
L x B x H 60.61 x 11.43 x 6.02 = 4 170
2. Draught, m 4.43
3. Endurance, days 18
4. Range, nautical miles 5000
5. Passenger capacity, pers. 10
6. RRR class ° M-SP 3.5A
7. ME power, kW 2 x 2000
8. Auxiliary diesel-generators, kW 2 x 275
9. Crew, pers. 15
10. Speed (at draft d = 4.43 m and 85% MCR), knots 17.0
